Horyong BMK-403 ECO

Pris ekskl. moms

Ring for pris

FavoriteFavorit
shareDel
Save searchGem søgning
Udskriv

INFO

Produktgruppe
Andre kraner
Mærke / model
Horyong BMK-403 ECO
Årgang
2018
Driftstimer
287 h
Maskinplacering
Duisburg, Nordrhein-Westfalen
Land
Tyskland
Generel klasse
1
2
3
4
5
Mascus ID
A65059D6

DETALJER

Antal tidligere ejere
1
Bruttovægt
4019 kg
Maksimal løftekapacitet
4200 kg
Max løftekapacitet ved enden af bommen
3000 kg
Længde på bom
680 cm
min. Luffing arm
220 cm
Bomlængde på kranen
680 cm
Løftehøjde
1020 cm
Kroghøjde - horisontal bom
840 cm
Kroghøjde - skråstillet bom
221 cm
Øvre motor
see chassis
Øvre timeantal
200 h
Original farve
Silber-Grün
Optræksmotor
Electric
Transportmål (LxBxH)
435000 x 157000 x 205000 mm
Undervogn
På hjul
Dækmærke
NM-Bereifung
Resterende fordæk
90
Resterende bagdæk
90
Produktionsland
Sydkorea
Forsendelsesbetingelser
FCA, CPT, EXW
Certifikater
CE, TÜV
Tilbehør
Hakenflasche 1-rollig
Udstyr
Krog blokke
Øvrige oplysninger

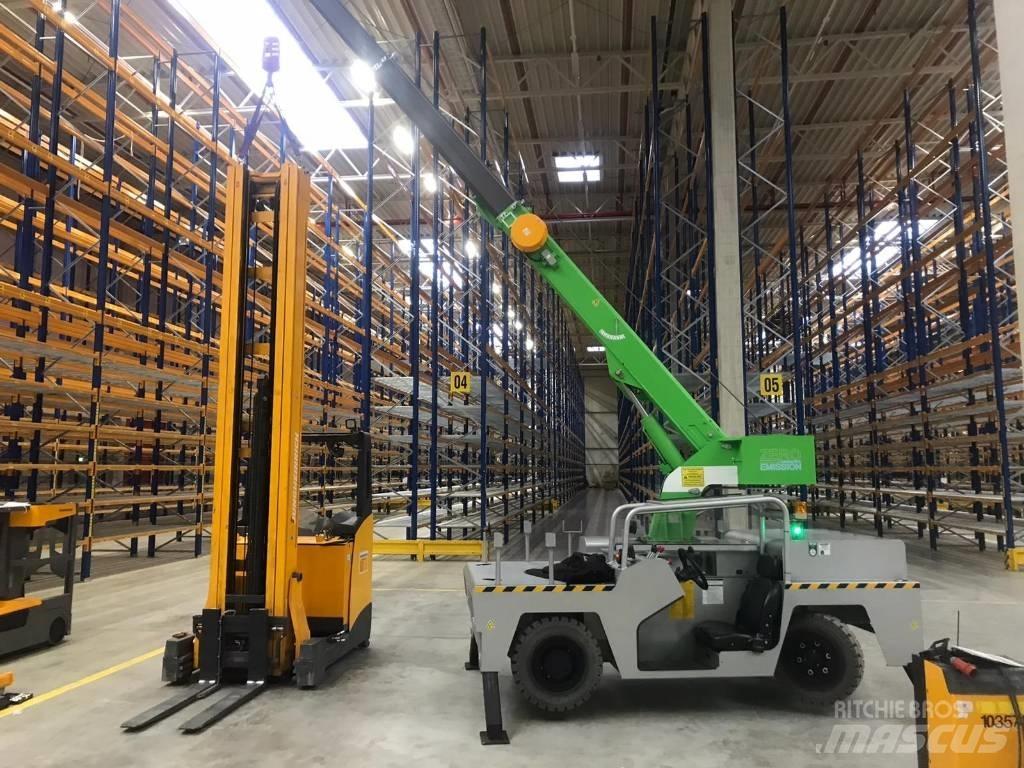

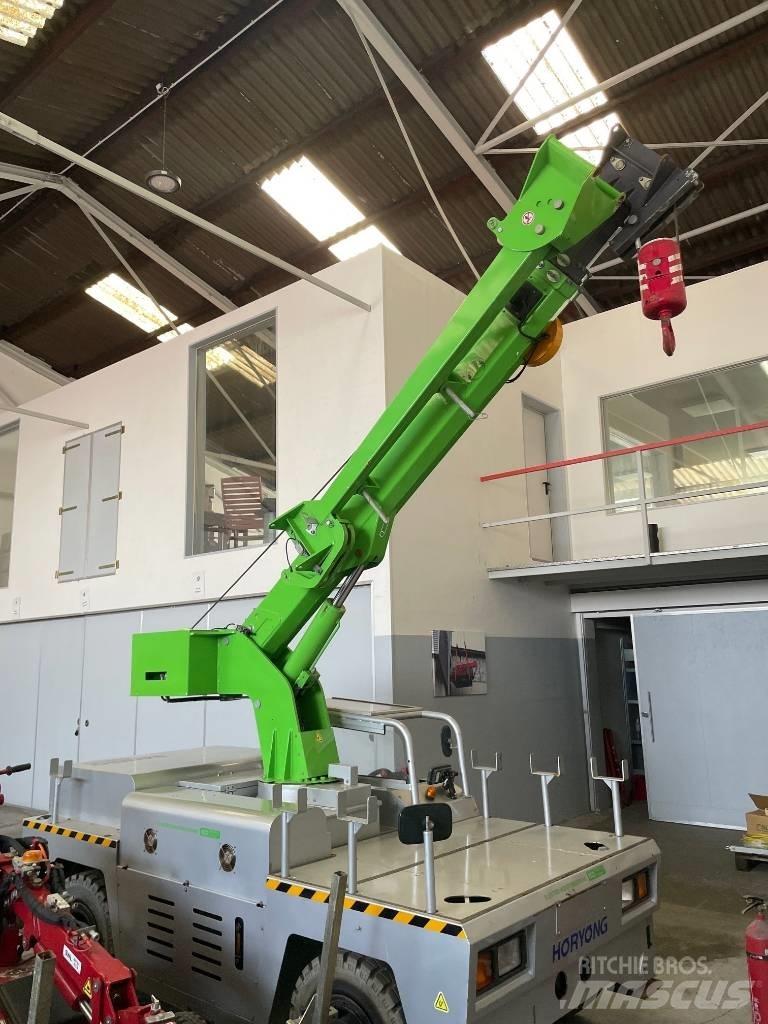

Battery industrial yard crane HORYONG BMK-403 ECO, used unit battery drive, CE 2018, approx. 287 working hours Pick+carry and Carry deck TECHNICAL DETAILS: max. lifting capacity 4,2 t x 0,9 m max. load pick + carry 2,9 t max. load on carry deck 2,5 t max. working range 6,7 m (8,2 m with fly jib) max. hook height: 8,41 m (10,2 m with fly jib) DIMENSIONS & WEIGHT length 4.350 mm width 1.570 mm, height 2.050 mm total weight of crane: 4.019 kg outrigger base: 2.330 mm x 3.330 mm CRANE EQUIPMENT: telescopic main boom 3,07 bis 6,8 m, fully hydraulic, 3 sections fly jib with sheave head 2,2 m, max. lifting capacity 1,2 t, angel 0°, 25°, 50° one winch 360° slewing range unlimited Electronical Safe Load Indicator System Rayco Wylie i4500 working range limiter optical and voice warning system working light, emergency stop, round-about light hook block 1-sheave, max. 4,0 t lifting capacity drive 4 x 2 x 2 Carry-Deck for goods, size 1,55 m², max. load 2,9 t 3 pieces pipe holders / transport holders 4-point hydraulic outriggers, front and rear electric engine with batteries, 2x 10 kW, 72V / 300 Ah, rechargable batteries, integrated battery charger max. speed of crane is 6 km/h 4x non marking tires open crane driver cabin with lattice protection roof, operation panel The electric yard crane crane is in good working condition and can be ideally used inside hall areas where exhausts are vorbidden, The unit is immediately available ex our yard and can also be rented for jobsites in Germany.Vis mere

Mini & Mobile Cranes Körner GmbH

Alte Kaserne 23 47249 Duisburg Nordrhein-Westfalen Tyskland
