Putzmeister M46-5

Pris ekskl. moms

Images58Videos1

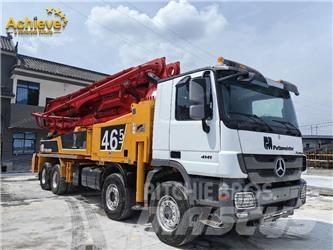

Putzmeister M46-5 Betonpumper
Putzmeister M46-5 Betonpumper
FavoriteFavorit
shareDel
Save searchGem søgning
Udskriv

INFO

Produktgruppe
Betonpumper
Mærke / model
Putzmeister M46-5
Årgang
2013
Driftstimer
3000 h
Ekstra valgmuligheder
Istandsat,Genfremstillet
Land
Kina
Generel klasse
1
2
3
4
5
Mascus ID
FF862F64

PRISSÆTNING

Vælg valuta

DETALJER

Lager nr.
AICPT016
Antal af bom sektioner
5
Seneste inspektion
2024-09-26
Bruttovægt
32000 kg
Længde på bom
300 cm
Max horisontal rækkevidde
4110 cm
Maks vertikal rækkevidde
4610 cm
Bevægelsestype
Statisk
Pumpe drivkraft
Diesel
Pumpetryk
300 kW
Transportmål (LxBxH)
11850 x 2500 x 4000 mm
Udstødningsklasse
Trin V
Motormærke (eller motorproducent)
Ergonic3. EU Version
Pumpe type
Stempel
Understel, producent
Mercedes Benz
Dækmærke
Mercedes Benz
Forsendelsesbetingelser
FOB, CIF
Certifikater
EPA, CE, TÜV
Tilbehør
Technical Details General Information Arms 5 Folding Type RZ-Folding Vertical Reach 46.1 m Horizontal Reach gross 41.1 m Horizontal Reach net 38 m Reach Depth 32.4 m Unfolding Height 11.1 m Slewing Range 365 degree End Hose - Length 3 m Delivery Line (DN, Pressure) DN125/5.5 / mm/bar Support width Standard (front-rear) 8.4 / 9.3 m Support width OSS (front-rear) 5.6 / 6.9 m Support width iSC (front/rear) 2.6-8.4 m Length x Width x Height 11.85 x 2.5 x 4 mm Total Weight (approx.) under 32000 kg Configuration Concrete Pump .19 iLS Concrete Pump .17 iLS Concrete Pump .16 H LS Concrete Pump .16 H Delivery Cylinder Diameter - Stroke Length 250/2100 mm Output (piston side) 190 m³/hr Delivery Pressure (piston side) 85 bar Strokes (piston side) 30
Øvrige oplysninger
If you are looking for a lightweight, high performance machine on 4 axles — the truck-mounted concrete pump M47-5 is built for you. Weighing less than 32 t, the 47-5 is one of the lightest in its class and provides a more than sufficient payload reserve. It is ideal for application at medium to large sized sites as well as job sites that offer challenging setup situations. Different small support Options available: Europe: ISC with permanent check of permitted arm positions and working ranges Outside Europe: OSS (One Side Support) The new fully flexible outrigger together with the intuitive Ergonic 3.0 control gives you all the freedom you need when space on the construction site is tight again. Key Features Below 32 t total weight Smooth 5-section-boom with Roll Z-Folding TRDI-Support for compact support area, fast setting up, relieved framework and difficult setup situations (iSC and OSS, One Side Support optional) Efficient work with Ergonic 3.0 operating system ReducVis mere

Achieve Innovations

5F Building 4, No.28, (M) Fuyuan Road, Kaifu Dist 410003 Changsha Hunan 湖南 Kina
