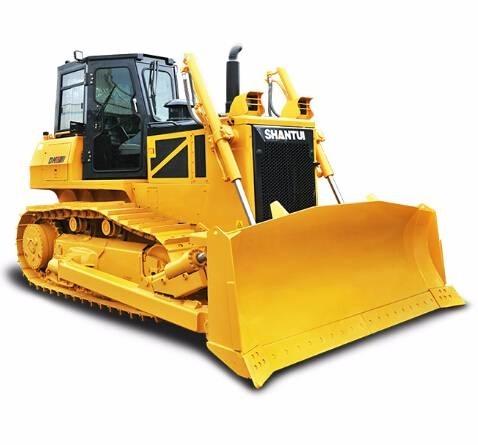

Shantui DH17

Name: Shantui DH17
Brand: Shantui
SKU: 743171FD
Availability: InStock

Pris ekskl. moms

Ring for pris

Favorit

Del

Gem søgning

Udskriv

INFO

Produktgruppe

Bulldozer på larvebånd

Mærke / model

Shantui DH17

Årgang

2018

Ekstra valgmuligheder

Maskinplacering

Jining, Shandong, China

Land

Kina

Generel klasse

Mascus ID

743171FD

DETALJER

Lager nr.

DH17

Seneste inspektion

yes

Fuld service historik

Arbejdsbredde

342 cm

Serienummer

DH17

Bruttovægt

18900 kg

Klinge type

Semi u-klinge

Understel

Sporbundet

Kabinetype

Lukket kabine

Udstødningsklasse

Trin II

Motor

Weichai WD10G190E213

Motorydelse

125 kW (170 hk)

Båndbredde

560 mm

Transmission

Shantui

Transportmål (LxBxH)

5250 x 3420 x 3080 mm

Original farve

yellow

Dækmærke

Shantui

Tilstandsoplysninger/Garanti

ISO9001

Resterende fordæk

100

Produktionsland

Kina

Udstyret til

propertynames.pp_equippedfor_2100012

Forsendelsesbetingelser

FOB, CFR, CIF, EXW

Certifikater

EPA, CE, ANSI

Udstyr

Kabeltræk

Klimaanlæg

Supplerende hydraulik

Single shank ripper

Vis mere

Øvrige oplysninger

Technical Features ●Weichai engine and high-efficiency fuel injection pump features high torque, high performances, high parts universality, and low maintenance cost. ●The electronically controlled static pressure drive system equipped can automatically adapt to the load variation and provide best bulldozing speed under different working loads. ●The intelligent matching technology can achieve best working efficiency and most reasonable fuel economy, with the composite fuel consumption reduced by 10~15%. ●The ergonomic hexahedral cab features large space and excellent visual field. ●The suspended single accelerator pedal features small volume, large foot space, and high operation comfort. ? ●The extensively adjustable seat and armrests provide the driver with the most comfortable operation posture. ●The integrally sealed shock-absorbing system of the cab reduces the interior noise by 3~4dB. ●The safety passage system of the whole machine guarantees the driver’s safety. ●With electronically controlled traveling system and hydraulic pilot controlled working device, the traveling system and the working device can be controlled by single joystick. ●The accurate control can be achieved by low operating forces, featuring flexible and light operations, high operation comfort, and high working efficiency. ●The static pressure drive system is capable of stepless speed change, loaded steering, and pivot steering, featuring high flexibility and mobility and applicability for diversified working conditions. ●The accurate control can realize the bulldozing operations in narrow spaces. ●The chassis system features long ground length, high ground clearance, stable traveling, and excellent trafficability and the semi-U blade equipped features powerful operation capability. ●The optional three-tooth ripper and traction frame are available to meet the diversified operation needs. ●The structural parts inherit the excellent quality of Shantui mature products. ●The electric harnesses adopt seamless corrugated pipes and branching deconcentrators, featuring high protection grade. ●The core electric and hydraulic units adopt imported products, featuring stable and reliable quality and extremely high reliability. ●The static drive system features compact structure, small volume, light weight, and easy maintenances. ●The modular structure eases the disassembling of parts and ensures low maintenance cost. Performance Parameters Length × width × height (mm) (excluding ripper) 5250×3420×3080 Operating weight (t) (excluding ripper) 18.9(including ripper) Engine model WD10G190E213 Net power/rated speed (kW/rpm) 127/2000 Ground pressure(Mpa) 0.064 Blade type Semi-U blade Blade capacity(m3) 4.4 Applicable Working Conditions Landfill of earthworks and bulldozing of other bulk materials and operations in extremely narrow sites.Vis mere

Jining Haoduo Import and export co., Ltd.

Second floor, First section, No.2 building,Jining Lantian Boiler 272000 Jining 济宁 Shandong 山东 Kina
