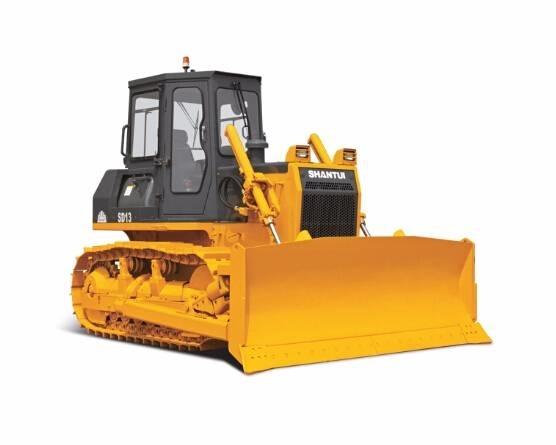

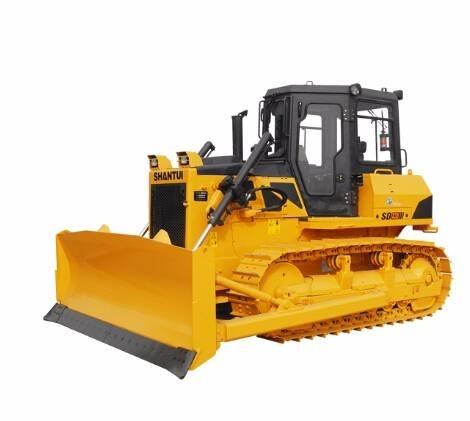

Shantui SD13Plus

Technical Features ● Shangchai SC8D143G2B1 turbocharged diesel engine features strong power and high efficiency and energy conservancy. ● The high reliability power shift transmission and the two-stage final drive with spur gear reducing structure features reliable and stable power transmission, high durability, and high operating efficiency. ● The high-efficiency radiator can help the normal running of machine under high temperature environment and ease the daily maintenances. ● The integrally injection molded instrument panel adopts micro-computer control and reasonably arranged instruments, featuring more distinct displays. ● The optimized working lamp arrangement improves the lighting performance of vehicle. ● The reversing alarm and the working warning lamp are equipped to ensure higher construction safety. ● The instrument box and the gantry frame are isolated to relieve the transmission of vibration. ● The full box-type main frame features high carrying capacity against impact load and bending moment and the high quality welds guarantee the life cycle of the main frame. ● The external working valves ease the daily maintenances and realize better maintainability. ● The PPC pilot controls achieve better labor-saving and convenient operations. ● The working device system pressure is increased to 21MPa, featuring high efficiency and energy-saving. ● The rigid traveling system transmits the working load and impact load onto the main frame to guarantee the stability of machine under complicated working conditions. ● The new hexahedron cab features super-large interior space and broader visual field. ● The mounting surface and the sealing surface are separated to achieve better sealing performance. ● The floor fender adopts the labyrinth sealing structure, with the internal noise as low as 87dB. Performance Parameters Length × width × height (mm) (excluding ripper)4492×3185×2490Operating weight(t) (excluding ripper)13.7 Engine modelSC8D143G2B1Net power/rated speed (kW/rpm)95.5/1900 Ground pressure(Mpa)0.063Blade typeStraight tilting blade Angle blade Blade capacity (m3)3.158 for straight tilting blade and 2.33 for angle blade Applicable Working Conditions Earthworks.
