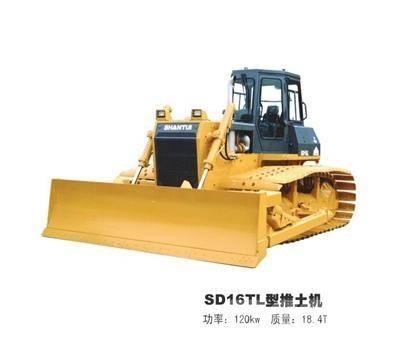

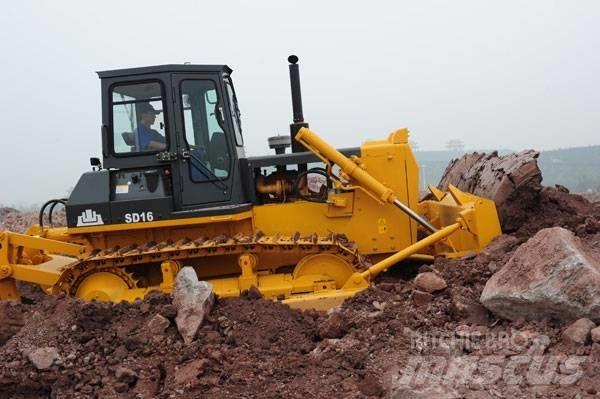

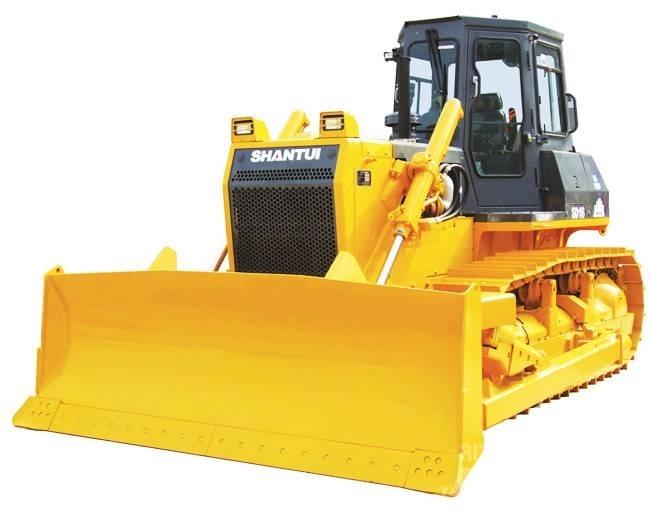

Shantui SD16

Ripper for option

ITEM UNIT SD16 L×W×H (Ripper not included) mm 6880×4130×3725 Operating weight (Ripper not included) t 17 Engine - Shangchai SC11CB184G2B1/ Weichai WD10G178E25 Rated power kW/rpm 120/1850 Gradeability ° 30 Blade type - Straight tilt blade U blade Angle blade Blade width mm Straight tilt blade 3388×1149 U blade 3556×1120 Angle blade 3970×1040 Dozing capacity m3 Straight tilt blade 4.5 U blade 5 Angle blade 4.3 Ma× drop below ground of blade mm 540 Lift height of blade mm 1095 Ripper type - Three-shank ripper Ripping depth of ripper mm 572 Lifting height of ripper mm 592 Number of carriers (each side) - 2 Number of track rollers (each side) - 6 Number of track shoes (each side) - 37 Width of track shoe mm 510 Track gauge mm 1880 Ground length and ground pressure mm/MPa 2430-0.067 Pitch mm 203.2 Forward speed km/h 0–3.29 0–5.82 0–9.63 Reverse speed km/h 0–4.28 0–7.59 0–12.53
