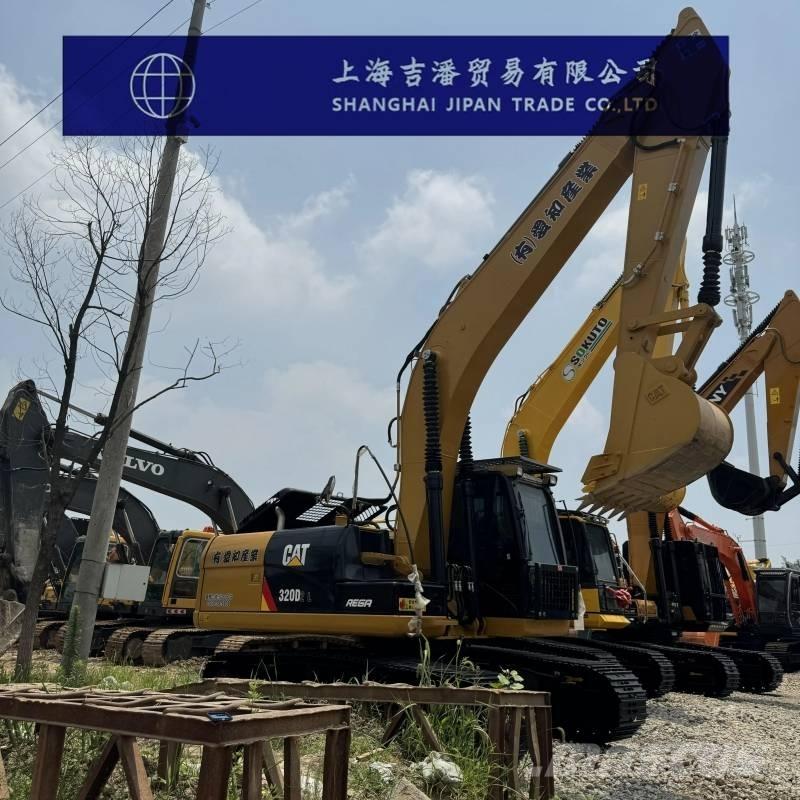

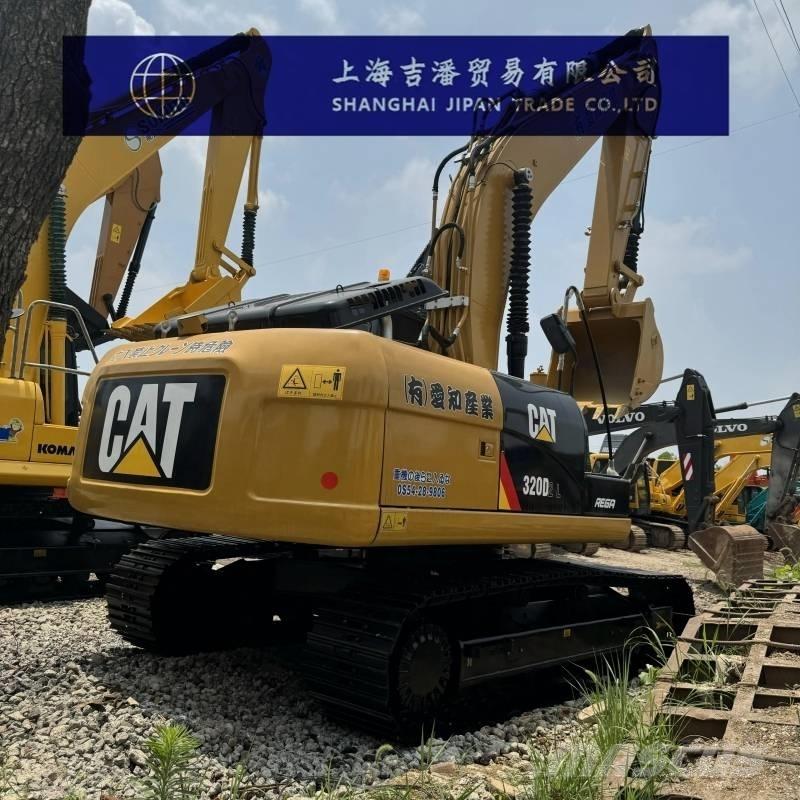

CAT 320 D

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Parameter configuration of CAT 320D hydraulic excavator Specification Power Traditional Power Tonnage (tons)20 The overall working weight of the machine (kg) is 21,100 Bucket capacity (m³)1 Boom length (mm):5700 Origin: The United States Performance Rotational speed (rpm):10.9 The rotary torque (Nm) is 61.8 Walking speed (km/h)5.4 Climbing ability (%)70/35° Bucket digging force (kN)125 Bucket shaft digging force (kN)104 Maximum traction force (kN)205 Power system Engine: Cat C7.1 Rated power (kw/rpm):112/1800 Displacement (L)7.01 Number of cylinders:6 Cylinder diameter × stroke (mm):105×135 The working form meets the National II emission standards Hydraulic system The main pump type is Caterpillar axial piston pump + pilot pump The maximum flow rate of the main pump (l/min) is 404 The pilot pump flow rate (L/min) is 32.4 Pilot oil circuit (MPa)39 Working hydraulic circuit (Mpa)34.3 Walking hydraulic circuit (Mpa)35 Rotary hydraulic circuit (Mpa)25 The main overflow set pressure (Mpa) is 35 Boom cylinders - number × cylinder diameter × stroke (mm)120×1260 Bucket rod cylinder - number × cylinder diameter × stroke (mm)140×1504 Bucket cylinder - Number × cylinder diameter × stroke (mm)120×1104 Is the hydraulic crushing pipeline standard? No Oil capacity Fuel tank (L)410 Hydraulic oil tank (L)138 Hydraulic system (L)260 Engine oil change volume (L)22 Coolant (L)25 Main body size The total transportation length (mm) is 9460 The total transportation width (mm) is 2800 Total transportation height (mm)3030 The total height of the cab (mm) is 2950 The width of the vehicle (mm) is 2800 The grounding length of the track (mm) is 3270 The total length of the track (mm) is 4080 Track plate width (mm):600/700/790 Total width of the track (mm):2800 (600mm track plate) Track gauge (mm):2200 Minimum ground clearance (mm):450 The ground clearance of the counterweight (mm) is 1020 Rear end turning radius (mm):2750 Scope of work The maximum excavation radius (mm) of the shutdown face is 9890 Maximum excavation depth (mm):6720 Maximum excavation height (mm):9490 Maximum unloading height (mm):6490 The maximum vertical excavation depth (mm) is 5690 The maximum effective excavation depth (mm) is 6380
