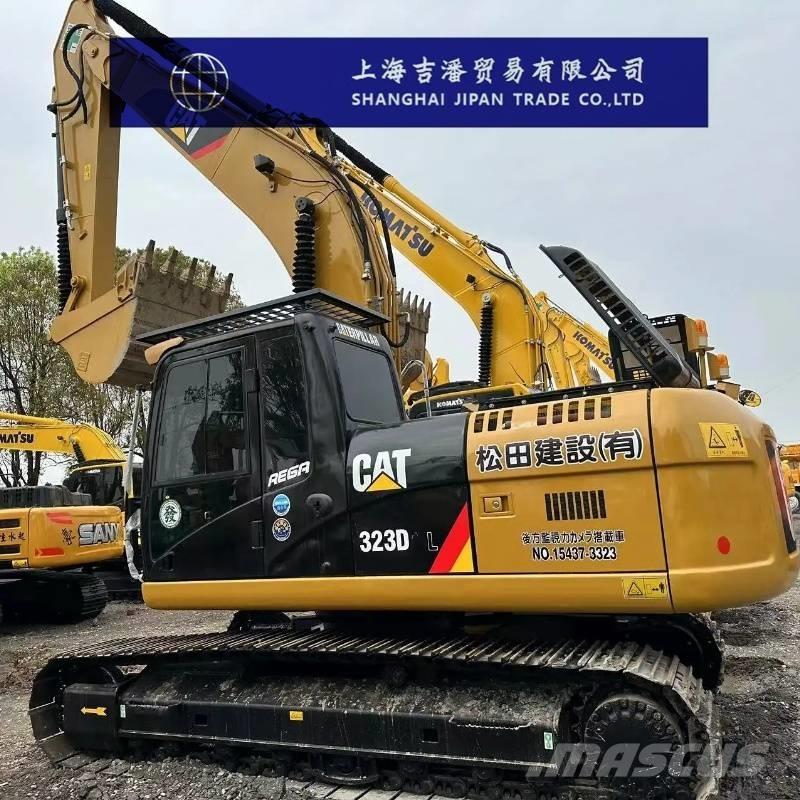

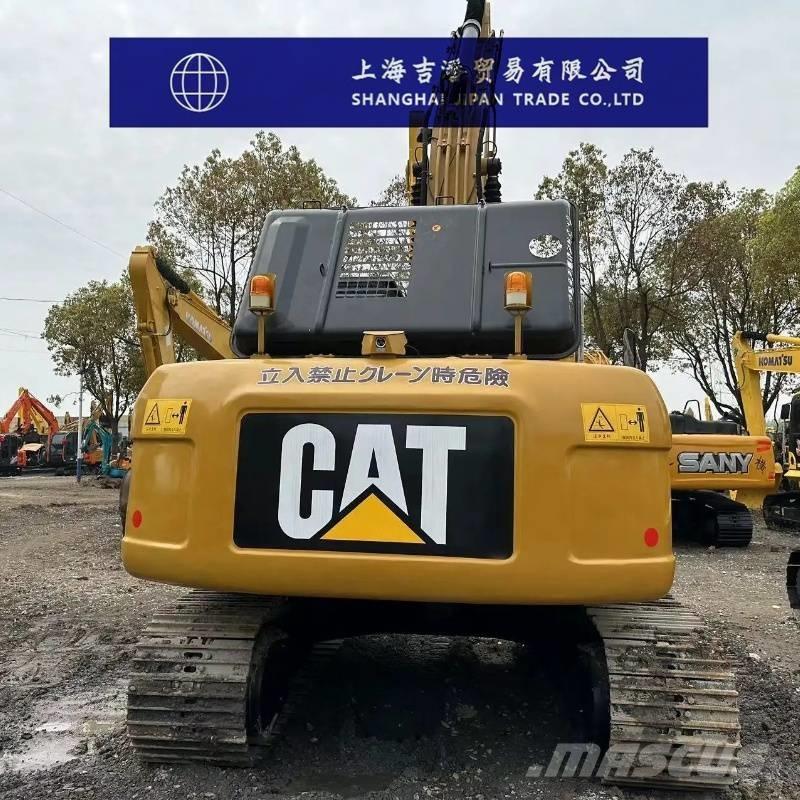

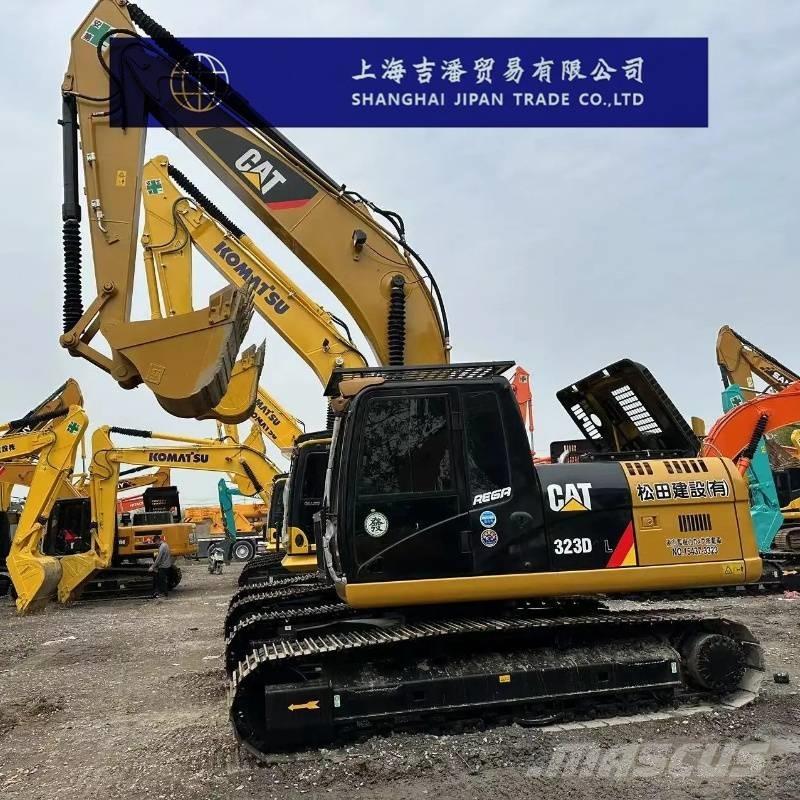

CAT 323 D

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Basic Information: Operating weight 23,000 kg, bucket capacity 1.2 m³, country of origin Japan. Performance Parameters: Swing speed 11.5 rpm, travel speed 3.5/5.7 Km/h, gradeability 70% (35°), bucket digging force 140 kN, stick digging force 106 kN. Engine Parameters: Engine model C6.4 ACERT, rated power 110 Kw/2000 rpm, displacement 6.4 L, number of cylinders 6, bore × stroke 102 × 130 mm, cooling method water-cooled. Hydraulic System Parameters: Main pump maximum flow 205 L/min, main relief pressure 3.5 MPa, working hydraulic circuit 3.5 MPa, travel hydraulic circuit 3.5 MPa, swing hydraulic circuit 2.5 MPa, pilot circuit 3.9 MPa. Boom cylinder - quantity × bore × stroke 120 × 1260 mm; stick cylinder - quantity × bore × stroke 140 × 1504 mm; bucket cylinder - quantity × bore × stroke 120 × 1104 mm. Hydraulic breaker pipeline is not standard. Fluid Capacity Parameters: Fuel tank 410 L, hydraulic oil tank 120 L, hydraulic system 260 L (including tank), engine oil change capacity 30 L, coolant 25 L. Dimension Parameters: Total transport length 9460 mm, total transport width 3180 mm, total transport height 3050 mm, overall cab height 2950 mm, counterweight ground clearance 1020 mm, track contact length 3650 mm, total track length 4455 mm, track shoe width 600 mm, total track width 3180 mm, track gauge 2380 mm, minimum ground clearance 450 mm, rear swing radius 2940 mm. Working Range Parameters: Maximum digging radius at ground level 9850 mm, maximum digging depth 6710 mm, maximum digging height 9470 mm, maximum dumping height 6500 mm, maximum vertical digging depth 5860 mm, maximum digging depth (at 2.5 m horizontal) 6380 mm. No dozer blade included.
