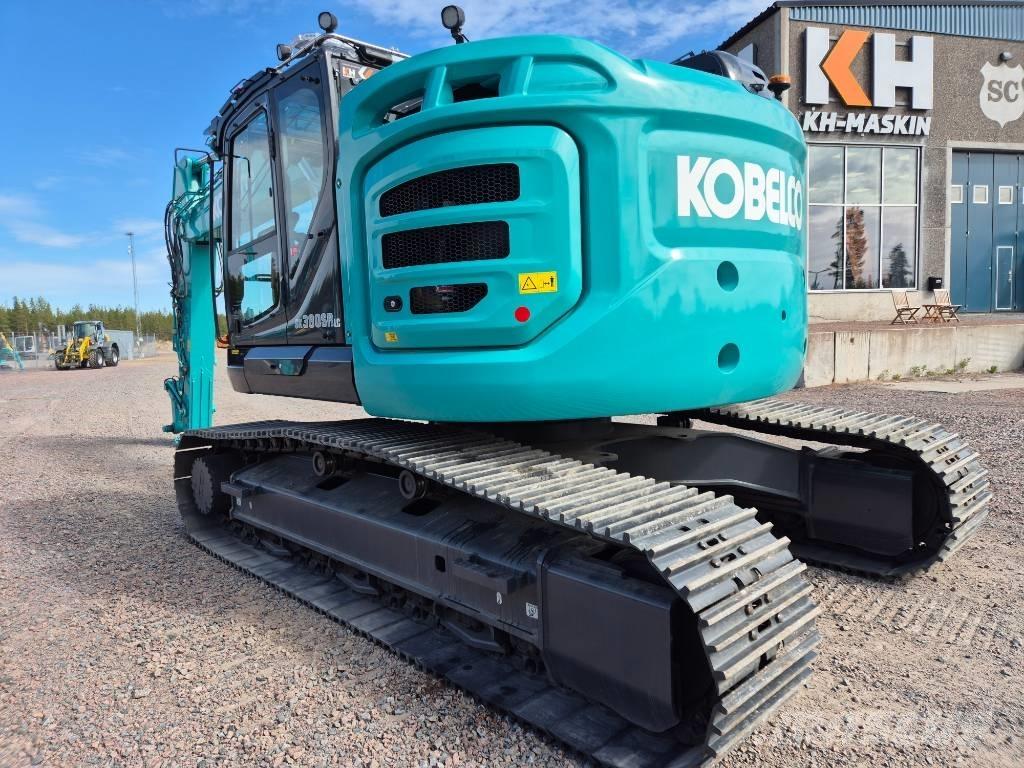

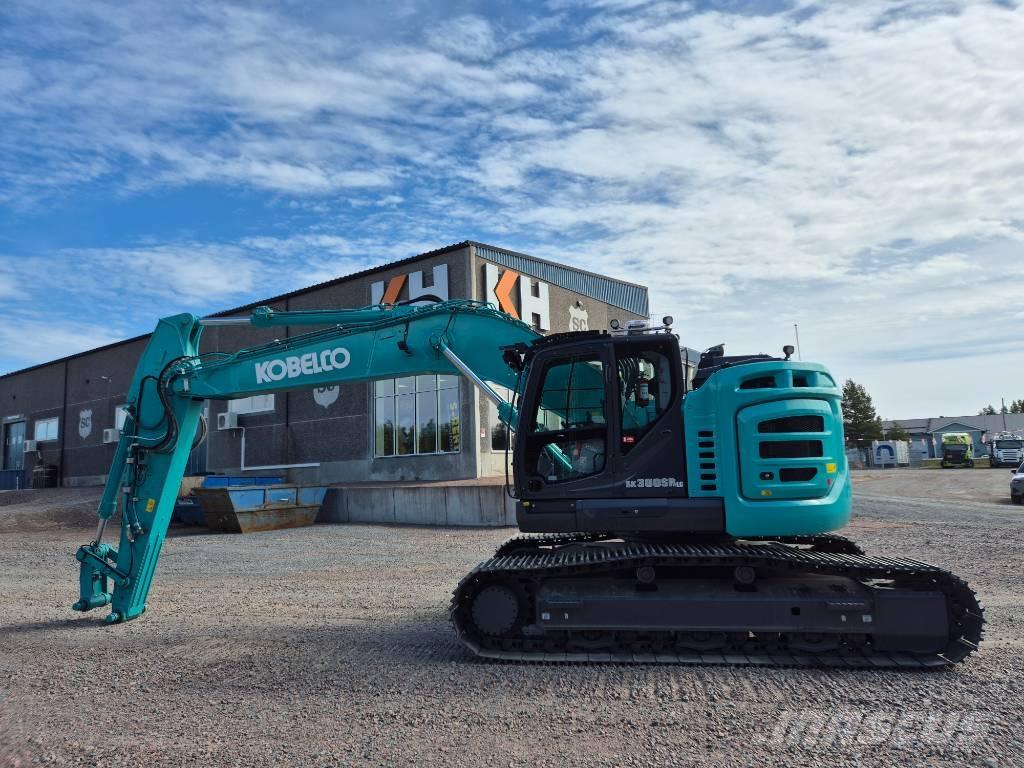

Kobelco SK380SRLC

Product specifications Engine Model: ISUZU 6HK1 Type: Direct Injection, water-cooled, 4-cycle diesel engine with turbocharger, intercooler complies with EU stage V exhaust emission regulation Fuel tank: 350 L Displacement: 7.790 L Rated power output: 210 kW / 1,900 min-1 (ISO14396) Digging force Bucket digging force (Short): 189 / 208* Bucket digging force (Standard): 189 / 208* Arm crowding force (Short): 158 / 174* Arm crowding force (Standard): 126 / 139* Short arm: 2.40 m Standard arm: 3.10 m Power boost engaged: UNIT = kN * Power Boost engaged Hydraulic system Type: Axial piston pumps + extra gear pump + pilot gear pump Max. discharge flow: 2 × 245 L/min, 1 × 44.3 L/min ,1 × 19 L/min Relief Valve Setting: 34.3 MPa (Boom, arm and bucket) Hydraulic fuel tank: 245 L tank oil level, 440 L hydraulic system Power Boost: 37.8 MPa Travel Force Travel motors: 2 × axial-piston, two-step motors Travel shoes: 48 each side Travel speed: 4.6/2.8 km/h Drawbar pulling force: 314 kN (SAE) Gradeability: 70 % {35°} Special attachments 2 PC Boom Operating weight: 37,500 kg - 39,200 kg Engine Rated Power: 210 kW / 1,900 min-1 (ISO14396) Bucket Capacity: 1.20 m3
