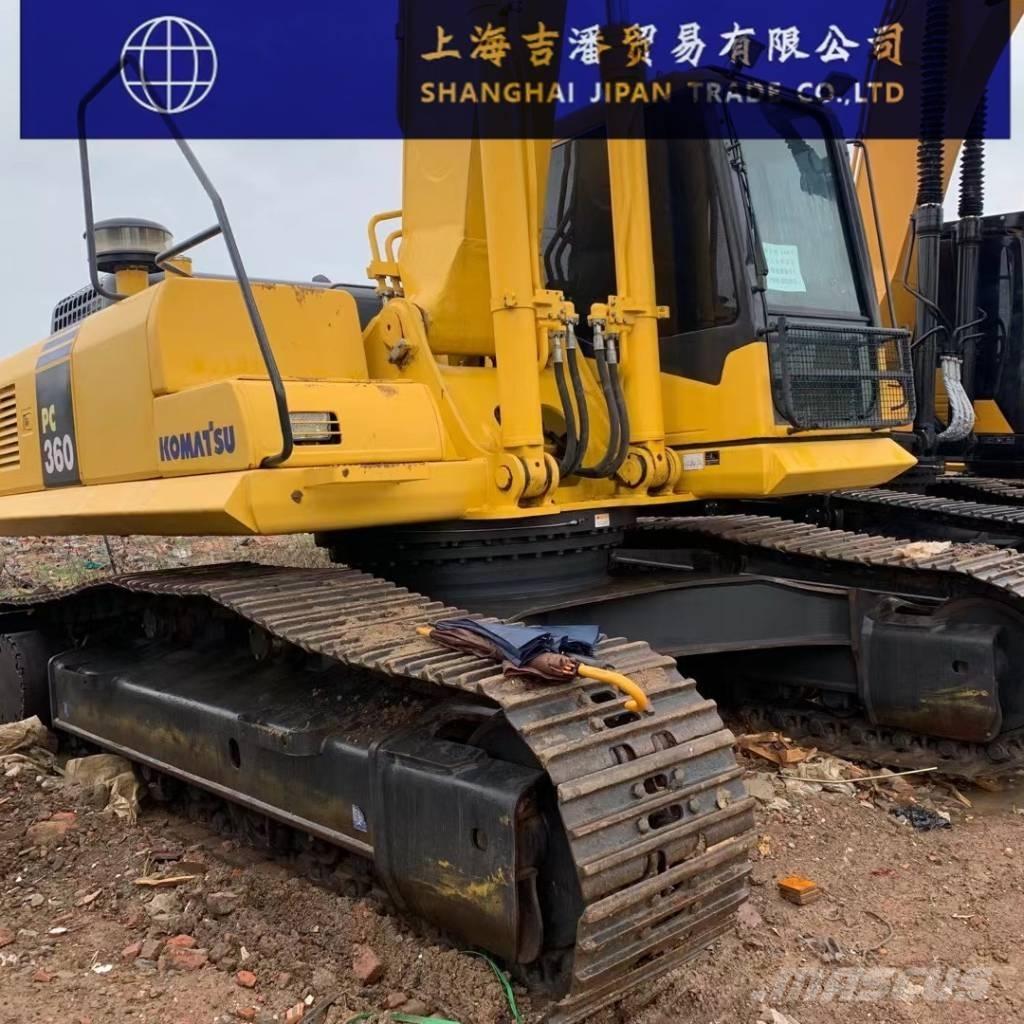

Komatsu PC 360

v

Komatsu PC360-8M0 excavator parameter configuration specification Power: Traditional power Joint ventures/imports Bucket backhoe Tonnage (tons) 36 The working weight of the whole machine (kg) is 33550 Bucket capacity (m³) 1.6-1.9 Boom length (mm) 6470 Stick length (mm) 3185 performance Rotational speed (rpm) 9.5 Travel speed (km/h) 5.5/4.5/3.2 Climbing ability (%) 70 Grounding specific pressure (Kpa) 68.5 Bucket digging force (kN) 232 Stick digging force (kN) 174 Maximum traction (kN) 264 dynamical system Engine model Komatsu SAA6D114E-3 Rated power (kw/rpm) 187/1950 Displacement (L) 8.27 Number of cylinders (pcs) 6 Bore × stroke (mm) 114×135 Cooling method: Water cooling Working form: six-cylinder, four-stroke turbocharged intercooled direct injection engine Hydraulic system Main pump type variable piston pump The maximum flow rate of the main pump (l/min) is 535 Pilot oil circuit (MPa) 3.2 Working hydraulic oil circuit (Mpa) 38.2 Walking Hydraulic Circuit (Mpa) 38.2 Slewing hydraulic circuit (Mpa) 28 Boom cylinder - number × bore × stroke (mm) 2-140×1480 Bucket Cylinder - Number × Bore × Stroke (mm) 1-160×1825 Bucket cylinder - number × bore × stroke (mm) 1-140×1285 Oil capacity Fuel tank (L) 605 Hydraulic Tank (L) 188 Engine oil change (L) 37 Coolant (L) 31 Body size Total length of transport (mm) 11150 Total width of transport (mm) 3190 Total height of transport (mm) 3145 Track grounding length (mm) 5755 Total track length (mm) 4625 Track shoe width (mm) 600 Total track width (mm) 3190 Track gauge (mm) 2590 Minimum ground clearance (mm) 500 Counterweight ground clearance (mm) 1185 The minimum turning radius of the front working device (mm) is 4450 Rear end turning radius (mm) 3450 Number of support wheels (unilateral) (pieces) 7 Number of support wheels (one side) (pcs) 2 Number of Track Shoes (Single Side) (Pieces) 45 Scope of work Maximum digging radius (mm) 11080 The maximum excavation radius of the shutdown surface (mm) is 10890 Maximum digging depth (mm) 7380 Maximum digging height (mm) 9925 Maximum unloading height (mm) 7040 Maximum vertical digging depth (mm) 6040
