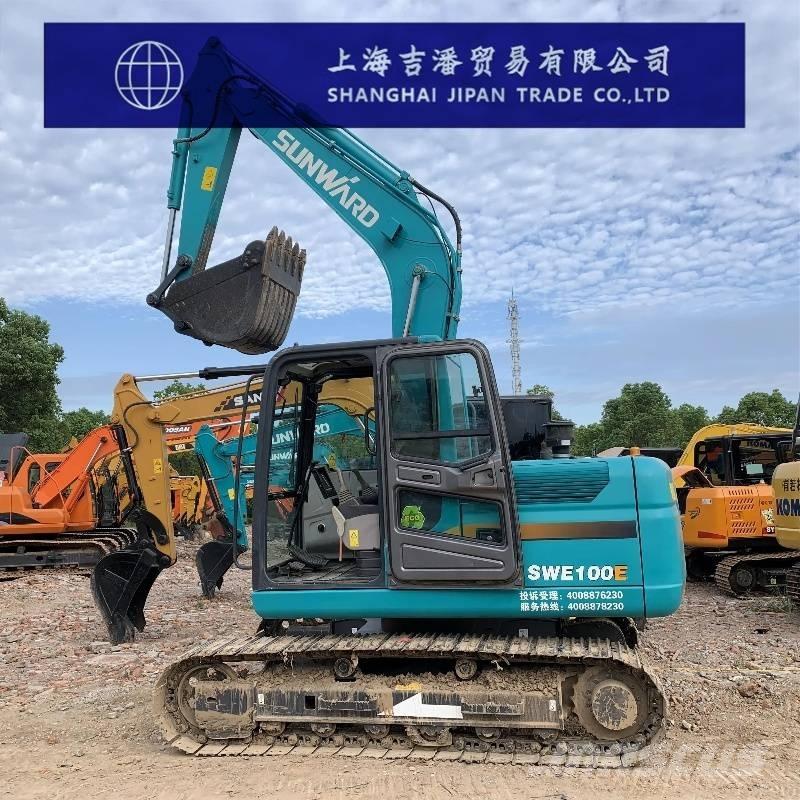

Sunward SWE 100

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 17756597429 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Sunward Intelligent SWE100E Excavator Parameter Configuration specification Power: Traditional power Manufacturer domestic Bucket backhoe Tonnage (tons) 10 The working weight of the whole machine (kg) is 9200 Bucket capacity (m³) 0.4 Boom length (mm) 3900 Stick length (mm) 1950 performance Rotational speed (rpm) 9 Travel speed (km/h) 4.5/2.7 Grounding specific pressure (Kpa) 36.8 Bucket digging force (kN) 64.5 Stick digging force (kN) 43 dynamical system Engine model: KUBOTA V3800-DI-T-ET09 Rated power (kw/rpm) 60.7/2200 Displacement (L) 3. 769 Number of cylinders (units) 4 Hydraulic system Main pump type variable piston pump The maximum flow rate of the main pump (l/min) is 168 Oil capacity Fuel tank (L) 145 Hydraulic Tank (L) 120 Body size Total length of transport (mm) 6470 Total Transport Width (mm) 2320 Total height of transport (mm) 2660 Cab total height (mm) 2660 Boarding width (mm) 2250 Track grounding length (mm) 2560 Total track length (mm) 3225 Track shoe width (mm) 450 Total track width (mm) 2320 Track gauge (mm) 1870 Minimum ground clearance (mm) 370 Counterweight ground clearance (mm) 845 The minimum turning radius of the front working device (mm) is 2250 Rear end turning radius (mm) 1870 Scope of work Maximum digging radius (mm) 6950 The maximum excavation radius of the shutdown surface (mm) is 6800 Maximum digging depth (mm) 4372 Maximum digging height (mm) 7515 Maximum unloading height (mm) 5315 Maximum vertical digging depth (mm) 3930
