Sany STC120T5

Pris ekskl. moms

Images9Videos2

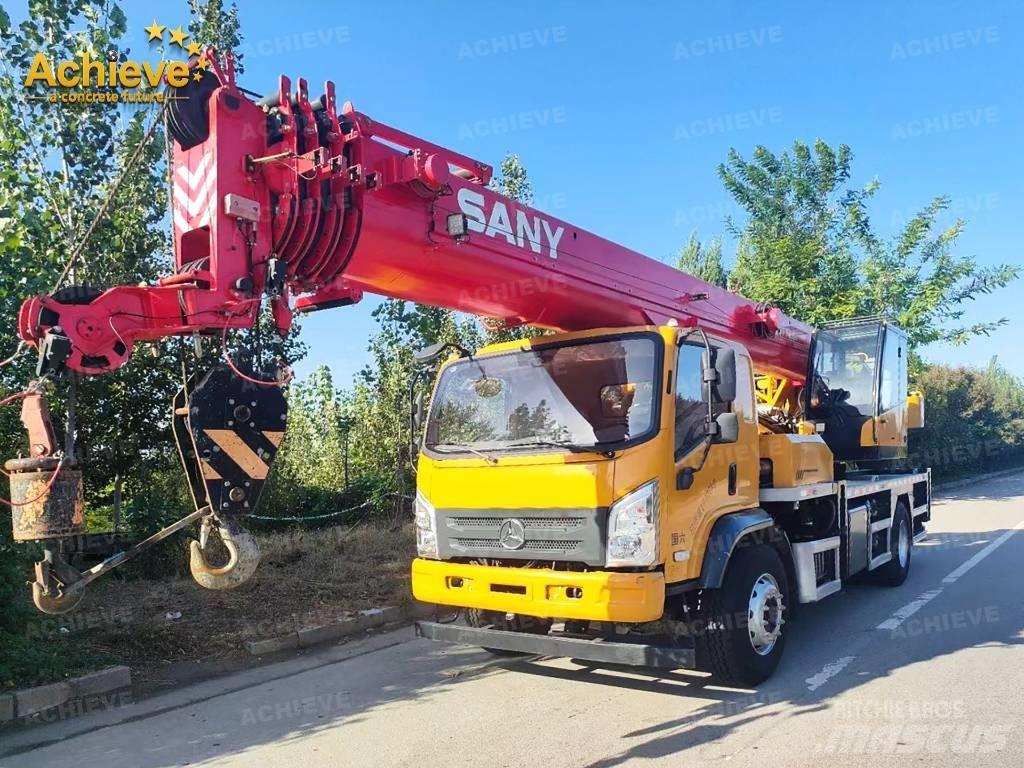

Sany STC120T5 Hejsespil og materialeelevatorer
Sany STC120T5 Hejsespil og materialeelevatorer
FavoriteFavorit
shareDel
Save searchGem søgning
Udskriv

INFO

Produktgruppe
Hejsespil og materialeelevatorer
Mærke / model
Sany STC120T5
Årgang
2022
Ekstra valgmuligheder
Istandsat
Land
Kina
Generel klasse
1
2
3
4
5
Mascus ID
1C7304EC

PRISSÆTNING

Vælg valuta

DETALJER

Løftehøjde
3900 cm
Maksimal løftekapacitet
12000 kg
Lager nr.
AITC005
Bruttovægt
12000 kg
Udstødningsklasse
Trin IIIA
Original farve
Orange and red
Motormærke (eller motorproducent)
Yuchai YCDV4863-235
Transportmål (LxBxH)
1162025003.025 m
Produktionsland
Kina
Forsendelsesbetingelser
FOB, CIF
Certifikater
EPA, CE, TÜV
Øvrige oplysninger
Applicable working conditions：Housing construction,Demolition works Excellent performance Maximum lifting height of main arm: 39m Maximum lifting weight of fully extended arm: 4.4t Maximum lifting torque: 598kN.m The cross-section of arm, frame and outrigger is fully upgradedStrength performance and torsion resistance maintain the leading level in the industry Maximum lifting height 39m Maximum lifting moment 598kN·m Maximum lifting capacity 12t Ingenious power i-ECO sensorless regeneration technology No parking regeneration is required for long-term operation, reducing fuel consumption Upgraded engine + 8-speed Fast (with synchronizer) Smooth gear shifting and stronger power Leading control 110m/r large displacement 9-piston oil pump + load-sensing system + pilot control, better combined action performance and controllability Pressure adaptive telescopic technology Upgraded boom telescopic stability, smooth telescopic start and stop Comfortable evolution Newly upgraded classic 311 cab, optional sleeper 25-ton Shenzhou control cab, large space for better driving experience Performance parameters Maximum lifting height 39m Maximum lifting moment 598kN·m Maximum lifting capacity 12t Speed ​​Parameters Maximum single rope speed of main winch 130m/min Boom full extension/retraction time 45/40s Full lifting/lowering time of crane arm 35/60s Maximum rotation speed 2.5r/min Weight parameters Total weight 19200kg Maximum weight 2t Size parameters Machine length 11620mm Full width 2500mm Overall height 3250mm Outrigger span (horizontal x vertical) 6.2×5.15m Power parameters Engine Model Yuchai YCDV4863-235 Maximum engine power 173/2300kW/rpm Maximum engine output torque 860/（1200-1700）N·m/rpm Driving parameters Maximum driving speed 90km/h Minimum turning radius 9m Maximum climbing grade 45% Approach Angle 13° Departure angle 13°Vis mere

Achieve Innovations

5F Building 4, No.28, (M) Fuyuan Road, Kaifu Dist 410003 Changsha Hunan 湖南 Kina
