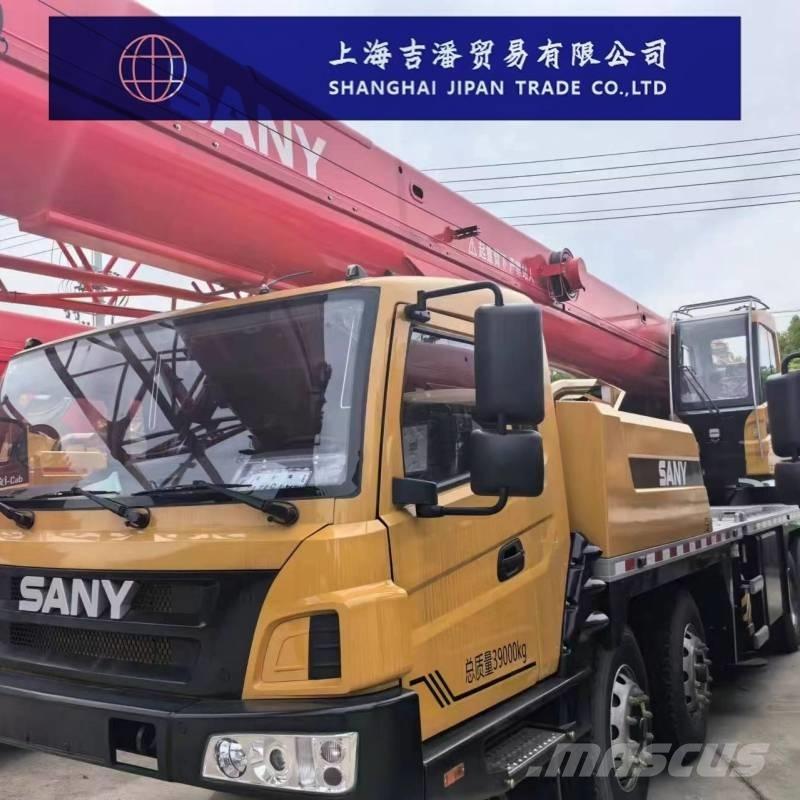

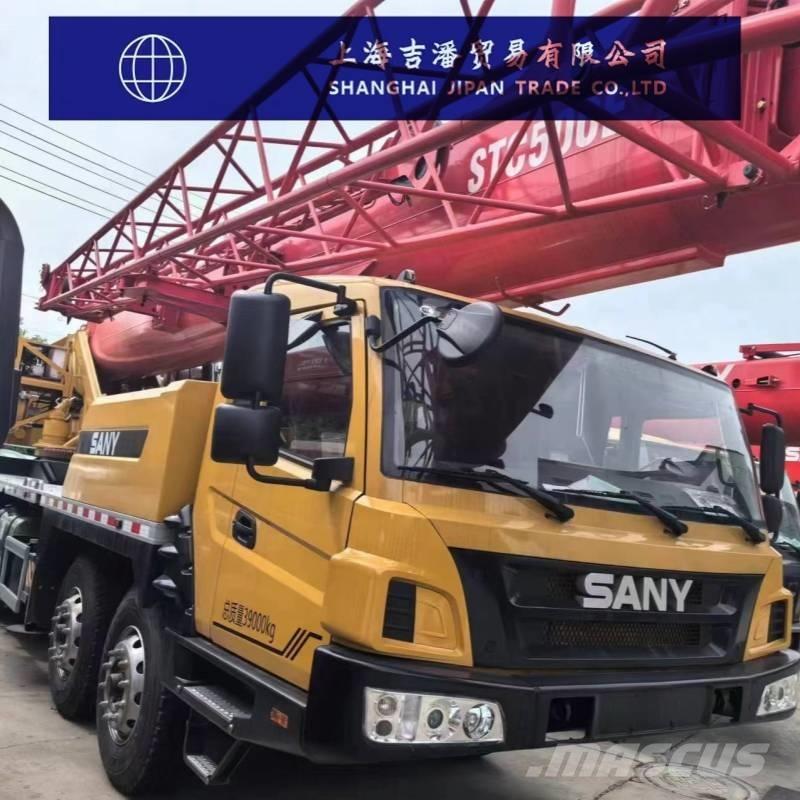

Sany STC 500 E

Fly Jib Hook Counter Weight We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Lifting capacity parameters Maximum rated lifting capacity:50 tons Maximum rated lifting moment: 1644kN·m-2107kN·m Maximum lifting height - fully extended boom:45.5m-62m Maximum lifting height - basic boom + auxiliary boom:61.5m-62m Operation speed parameter Maximum single-rope speed of the main hoist: 120m min-145m/ min Full extension time of the boom:90 seconds -100 seconds Full retraction time of the boom:110 seconds -120 seconds The full lifting time of the boom:45 seconds -60 seconds The full lowering time of the boom: 70s-90s Engine parameters Engine models: Yuchai YCK08330-61, Weichai WP9H336E62, etc Rated power:243 2200kW/ rpm (Yuchai YCK08330-61),247; 1900kW/ rpm (Weichai WP9H336E62) Driving parameters Maximum driving speed: 85km/h h-90km/ h Minimum turning radius:12 meters Maximum climbing gradient:45%-47% Approach Angle:18°-19° Departure Angle:11°-14° Minimum ground clearance: 250mm-320mm Overall machine specification parameters The overall length of the machine is 13960mm-14420mm Overall width of the machine: 2650mm-2800mm Overall height of the machine: 3700mm-3885mm Outrigger span (transverse × longitudinal):6.05m×7.4m-8.0m×6.24m Weight parameter The total weight of the entire machine:39,000 kg-42,000 kg Maximum counterweight: 6t+2.5t-9.8t
