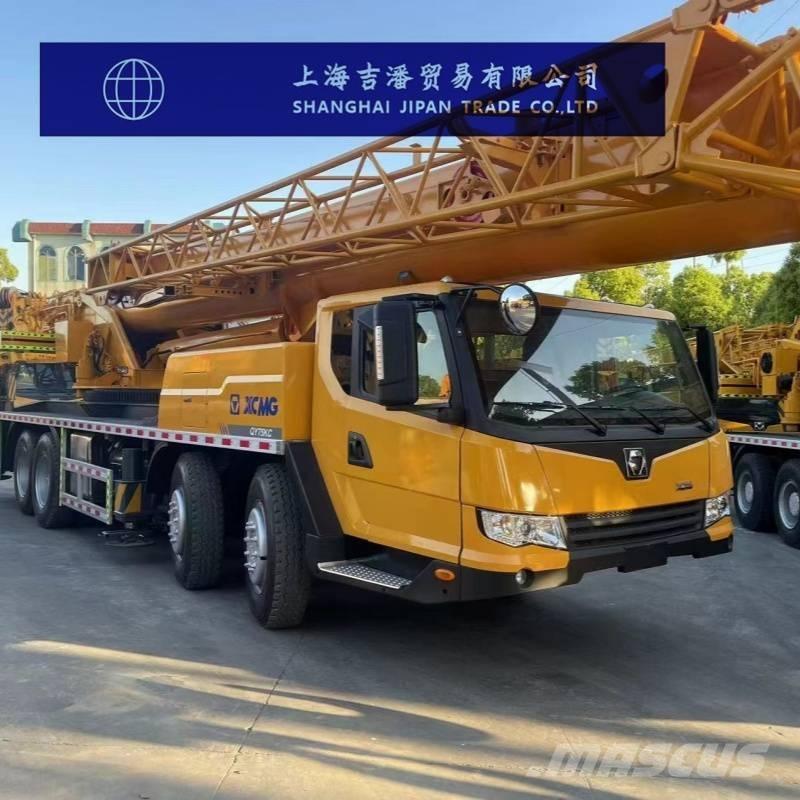

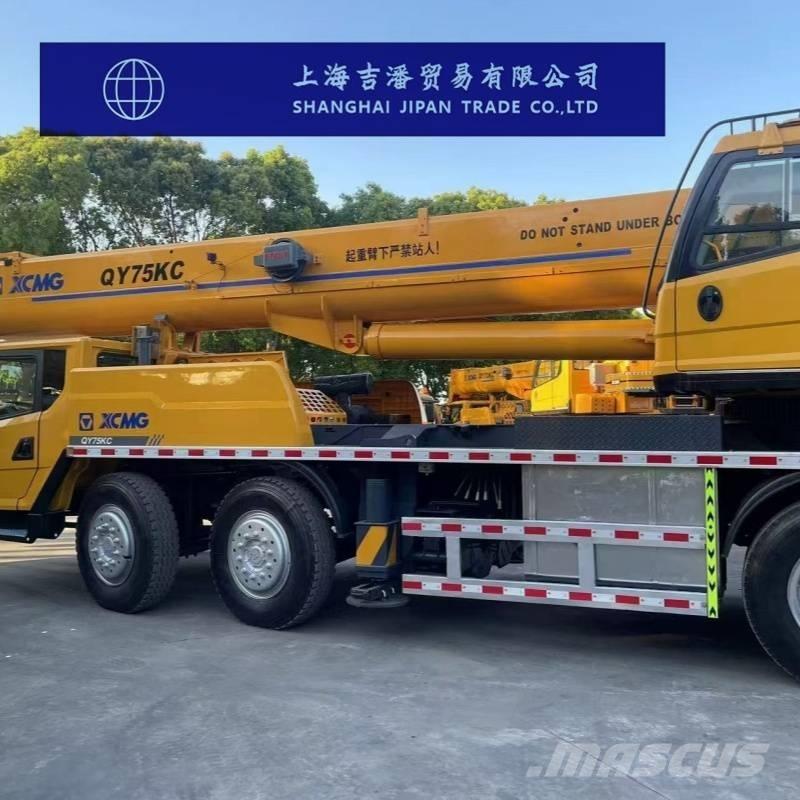

XCMG QY 75 K

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 17756597429 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

XCMG QY75K crane parameter configuration Lifting capacity Maximum rated lifting capacity (t) 75 Minimum working range (m) 3 The maximum rated lifting torque (KN.m) is 2969 Maximum lifting height - basic arm (m) 12.6 Maximum lifting height - full reach arm (m) 47 Maximum lifting height - basic arm Jib (m) 64.5 Maximum lifting capacity (tons) 45-90 tons Maximum lifting capacity (tons) 45-90 tons Lifting arm size Lifting arm length - basic arm (m) 12.2 Job speed parameters The maximum lifting speed of the main winch (m/min) is 75 at full load and 140 at no load The maximum lifting speed of the sub-winch (m/min) is 98 at full load and 108 at no load The total extension time of the lifting arm (s) is 110 Luffing time (s) 55 of the lifting arm Rotational speed (rpm) 1.9 motor Chassis engine model D10.38A-40 Rated power (kw/rpm) 276/2200 Driving parameters The maximum travel speed (km/h) is 80 Minimum turning radius (m) 10 Maximum climb (%) 37 Approach/departure angle (°) 19/15 Minimum ground clearance (mm) 427 Specifications of the whole machine The total length of the whole machine (mm) is 14650 The overall width of the whole machine (mm) is 2800 The overall height of the whole machine (mm) is 3880 Total counterweight (t) 48 Wheelbase (mm) 1500 4665 1500 Outrigger span Longitudinal × horizontal (m) 6.4×7.6
