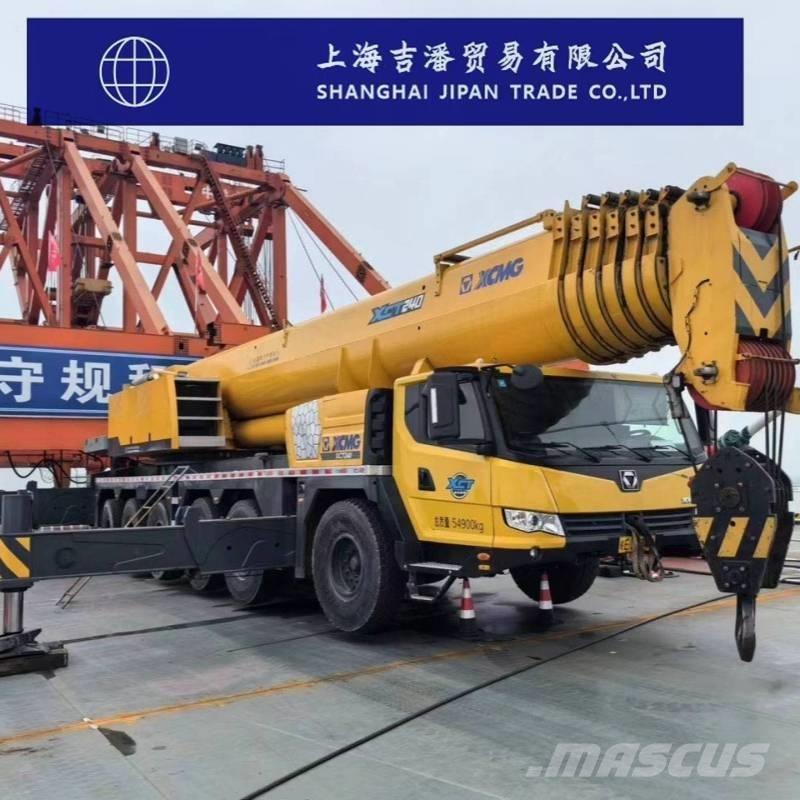

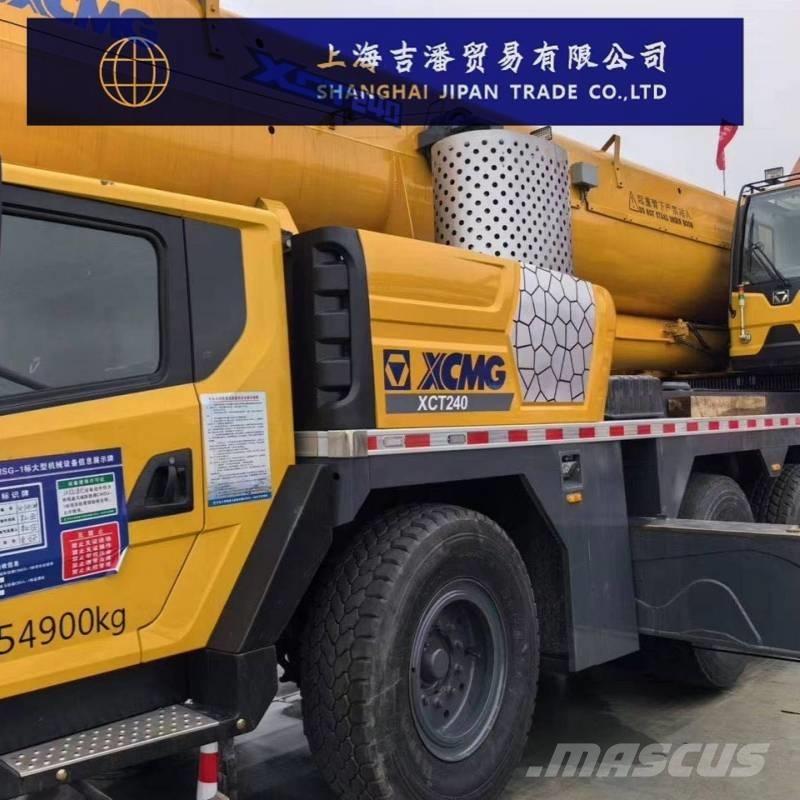

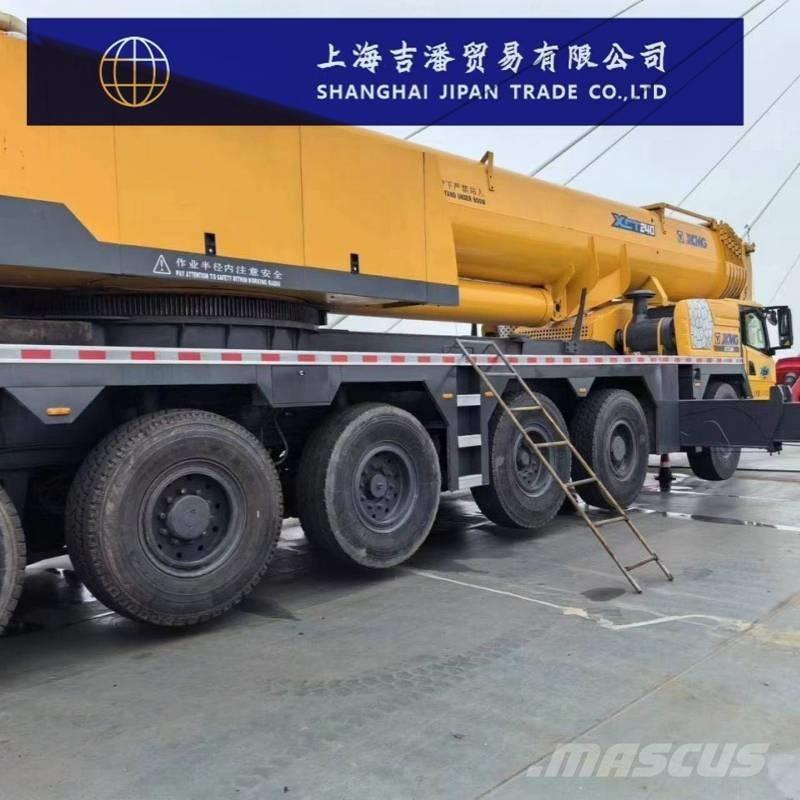

XCMG XCT 240

Fly Jib Hook Counter Weight We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Maximum rated lifting capacity: 240 tons Boom: 7-section "U" -shaped cross-section boom, with a length of up to 67 meters Chassis: 6-axle chassis, drive/steering mode: 12×6×10 Engine: The engine model of the vehicle is OM502LA.Ⅲ/5, which is a V-type, liquid-cooled, eight-cylinder, four-stroke, turbocharged, intercooled, electronically fuel-injected diesel engine. It has a maximum net power of 420kW/1800r/min and a maximum torque of 2700N · m/1080r/min. The engine model for the vehicle is TAD722VE or TAD750VE, with a maximum net power of 194/2100kW or 181/2100kW, and a maximum torque of 1050/1400N · m or 1050/1500N · m Transmission: German ZF original imported electronically controlled transmission, with 16 forward gears and 2 reverse gears Fuel tank capacity: approximately 500 liters Hydraulic oil tank capacity: approximately 1200L Tires: Specifications are 385/95R25 and 14.00R25, with a total of 12 tires (excluding spare tires) Main hoisting mechanism: Single rope tension 147KN, wire rope diameter φ24mm, length 320m Auxiliary lifting mechanism (optional) : Single rope tensile force 130KN, wire rope diameter φ24mm, length 220m Full extension time of the boom: 650 seconds Maximum rotational speed: 1.6r/min Lifting speed: 115m/min for the main lifting mechanism Outrigger distance (full extension) : 9.625m longitudinally, 8.7m laterally Basic boom lifting height: 12.6 meters The longest main boom lifting height: 65.6 meters The maximum lifting height of the longest main boom + auxiliary boom (12m) is 78.1m The maximum lifting height of the longest main boom plus auxiliary boom (20m) is 85.7 meters The tail turning radius of the counterweight: 4800mm Maximum driving speed: 71km/h Minimum stable driving speed: 2.1km/h Minimum turning diameter: 24 meters Minimum ground clearance: 280mm Approach Angle: 25° Departure Angle: 18° Braking distance (with an initial braking speed of 30km/h) : ≤10 meters Maximum climbing ability: 48% External noise during acceleration: 84dB (A) Driver's ear noise: 90dB (A)
