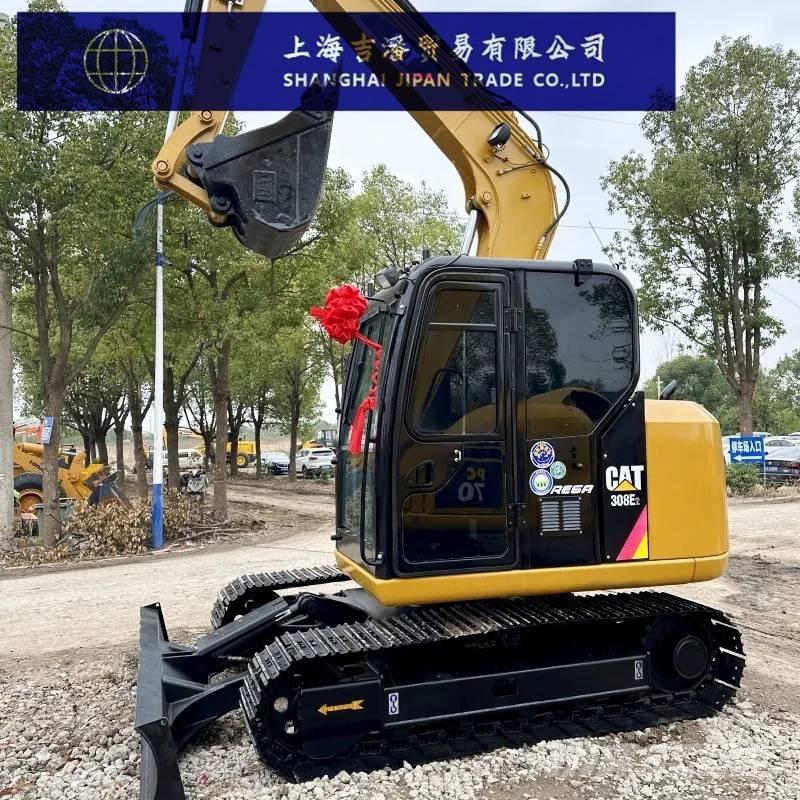

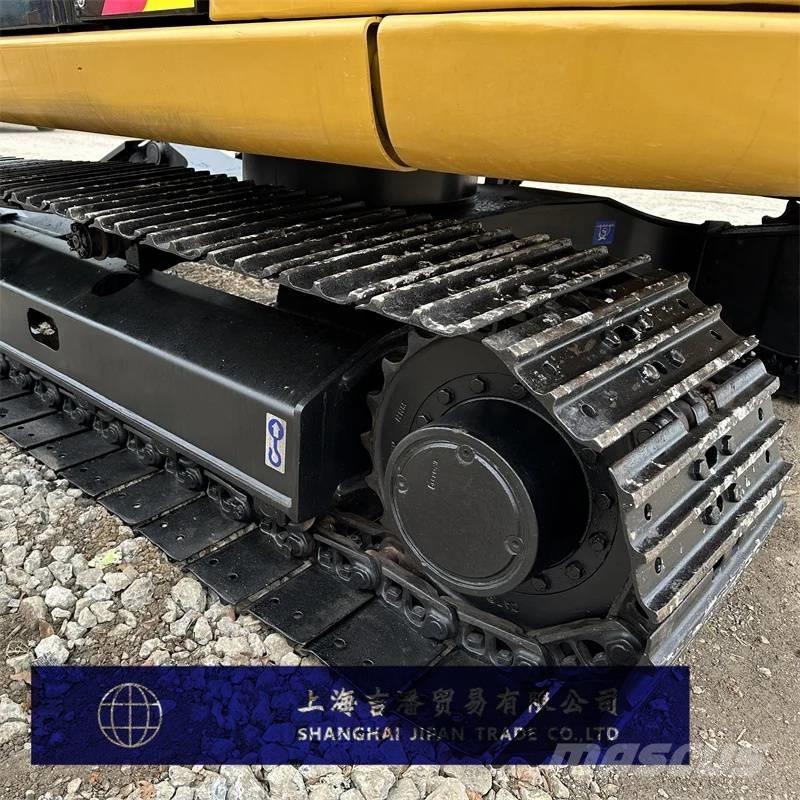

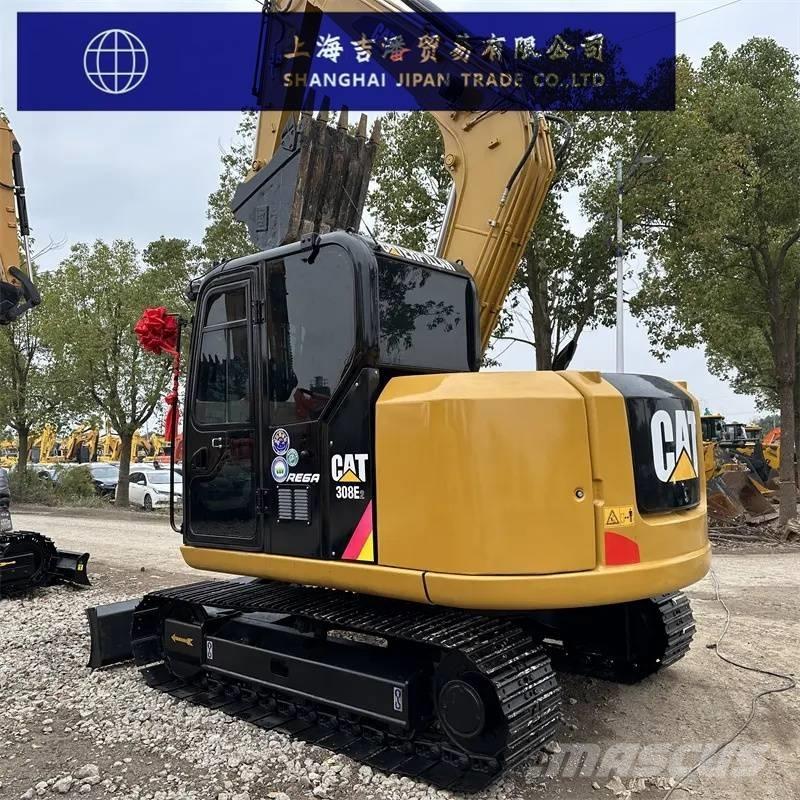

CAT 308E

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Parameter Details Engine Model Cat C3.3 DI Turbo Net Power 65 hp (48 kw) @ 2400 rpm Gross Power 66.6 hp (50 kw) Bore 3.7 in Stroke 4.7 in Displacement 203.2 in³ (3.33 L) Emission Standard ISO 9249/EEC 80/1269 Weight & Dimensions Parameter Details Operating Weight 18371 lb Total Transport Length 20.11 ft (6080 mm) Total Transport Width 7.61 ft (2320 mm) Total Transport Height 8.4 ft (2560 mm, to the top of the cab) Maximum Digging Depth (Standard Stick) 13.7 ft (4210 mm) Maximum Digging Height 24.05 ft (7330 mm) Maximum Reach at Ground Level (Standard Stick) 22.9 ft (6420 mm) Maximum Dump Height (Standard Stick) 21.9 ft (5300 mm) Tail Swing Radius 5.74 ft (1750 mm) Minimum Ground Clearance 1.21 ft (370 mm) Track Length 9.55 ft (2910 mm) Track Contact Length 7.48 ft (2280 mm) Track Width 1.48 ft (450 mm) Performance Parameter Details Standard Bucket Capacity 0.38 m³ Bucket Digging Force 13534 lb (57.1 kN) Stick Digging Force 9015 lb (38.9 kN) Swing Speed 10 rpm Travel Speed (High) 3.26 mph (5.1 km/h) Travel Speed (Low) 2.06 mph (3.2 km/h) Maximum Gradeability 30° Maximum Traction Force 14500 lb (56.9 kN) Hydraulic System Parameter Details Equipment Operating Pressure 4061 psi Travel Operating Pressure 4641 psi Swing Operating Pressure 3481 psi Primary Auxiliary Circuit Flow 33.8 gal/min Secondary Auxiliary Circuit Flow 16.9 gal/min Hydraulic System Capacity 24.8 gal (US) Hydraulic Tank Capacity 21.7 gal (US) Refill Capacities Parameter Details Fuel Tank Capacity 33 gal (US) (135 L) Engine Oil Capacity 3 gal (US) (11.2 L) Cooling System Capacity 3.7 gal (US) (12.1 L) Swing Reduction Gear Oil Capacity 0.4 gal (US) (1.5 L) Travel Reduction Gear Oil Capacity 0.35 gal (US) (1.3 L)
