CAT CAT305.5E2

Pris ekskl. moms

Images10

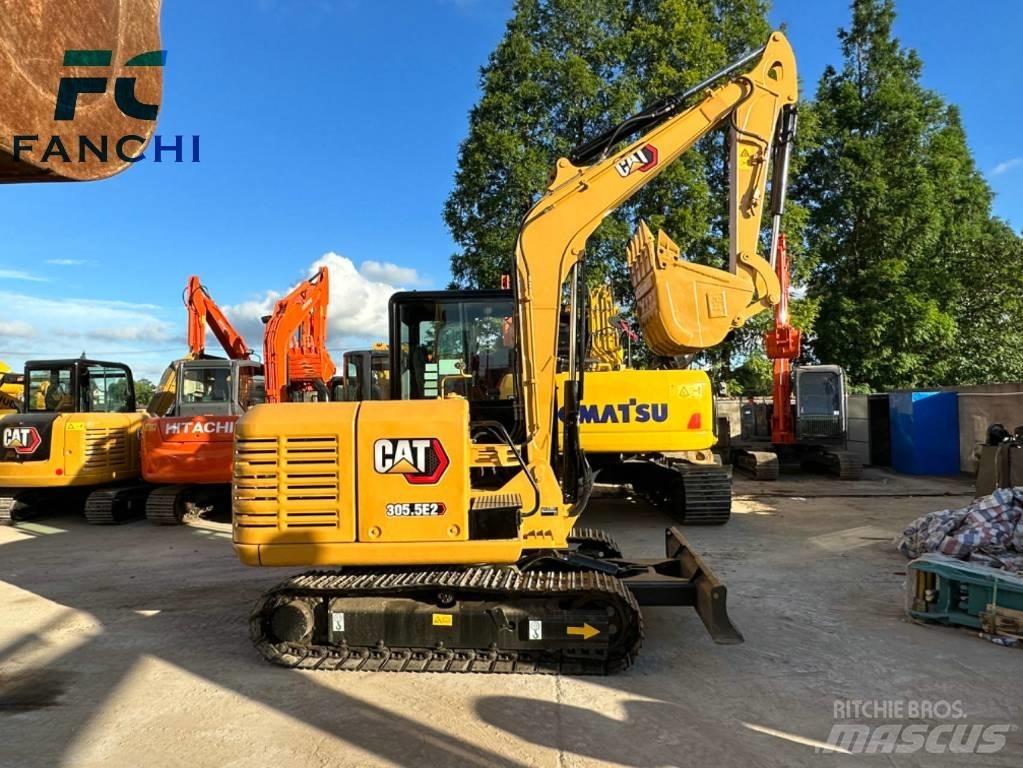

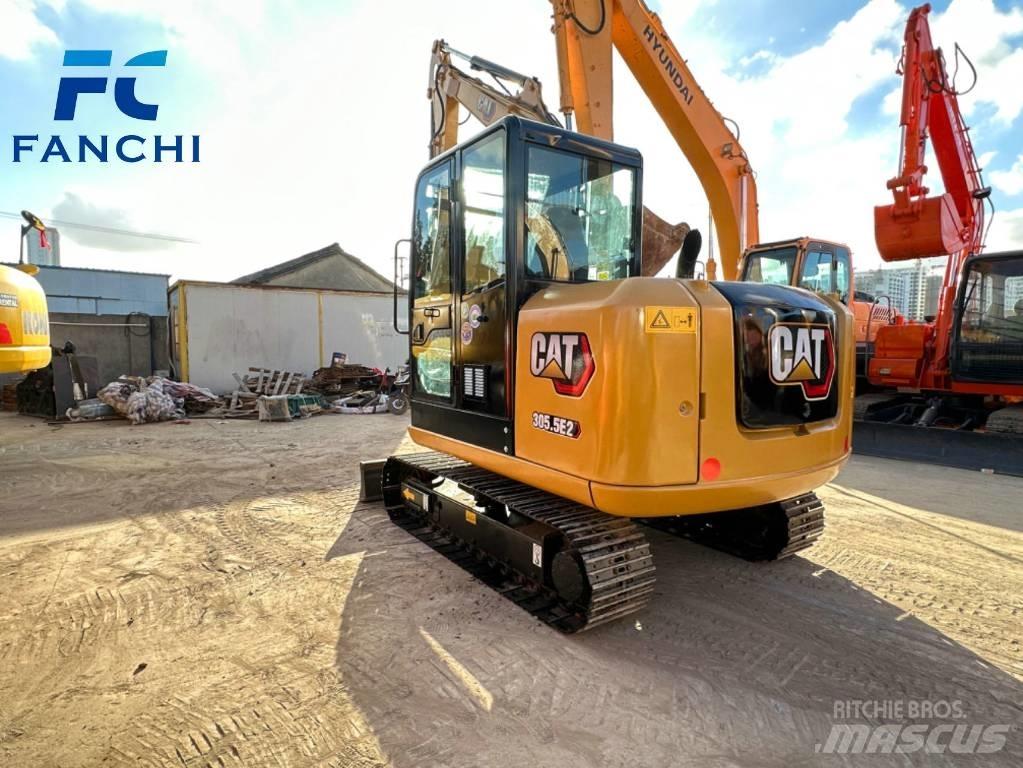

CAT CAT305.5E2 Minigravemaskiner
CAT CAT305.5E2 Minigravemaskiner
CAT CAT305.5E2 Minigravemaskiner
FavoriteFavorit
shareDel
Save searchGem søgning
Udskriv

INFO

Produktgruppe
Minigravemaskiner
Mærke / model
CAT CAT305.5E2
Årgang
2024
Driftstimer
450 h
Ekstra valgmuligheder
Genfremstillet
Land
Kina
Generel klasse
1
2
3
4
5
Mascus ID
77BC2619

PRISSÆTNING

Vælg valuta

DETALJER

Driftstype
Diesel
Fuld service historik
Ja
Antal tidligere ejere
1
Undervognens tilstand
good
Bruttovægt
5500 kg
Udstødningsklasse
Trin V
Båndbredde
400 mm
Skovlkapacitet
0.22 m3
Transportmål (LxBxH)
576519502.54 m
Original farve
YELLOW
Rækkevidde
960 mm
Motor
Cat C2.4 DI
Motorydelse
34.1 kW (46.4 hk)
Motormærke (eller motorproducent)
JAPAN
Tilstandsoplysninger/Garanti
good
Produktionsland
Japan
Forsendelsesbetingelser
FOB, CIF, EXW
Certifikater
EPA, CE, ANSI, AS, CSA, EAC GOST, TRUA, JIS, TÜV, ASME
Tilbehør
All the auxiliary accessories can be provided for you. The above information is for reference only, and the specific details need to be confirmed with the factory.
Udstyr
Oprensningsskovl
Klimaanlæg
Supplerende hydraulik
AdBlue
Vis mere
Øvrige oplysninger
The performance parameters of the Caterpillar CAT305.5E2 excavator are as follows: 1. **Overall Dimensions of the Machine** - Total transportation length: 5765mm, total transportation width: 1950mm, total transportation height: 2540mm, minimum ground clearance: 628mm, rear swing radius: 1580mm, total track length: 2440mm, track gauge: 1550mm, track shoe width: 400mm, center distance between idler wheels: 1920mm. 2. **Operating Weight** - The operating weight of the whole machine is 5400kg. 3. **Bucket Capacity** - The bucket capacity is 0.22 cubic meters. 4. **Power System** - Engine model: Cat C2.4 DI, rated power: 34.1kW, cylinder bore: 87mm, stroke: 102.4mm, displacement: 2.4L. 5. **Performance Parameters** - Swing speed: 10.5rpm. - Gradability: 50%. - Bucket digging force: 35.0kN. - Stick digging force: 27.2kN. - Maximum drawbar pull: 40.2kN. - Travel speed: 4.3/2.8km/h. - Swing torque: 13.9N·m. 6. **Hydraulic System** - Maximum main pump flow: 140L/min. The type of the main pump is a load sensing hydraulic system equipped with a variable displacement piston pump, and the working hydraulic circuit pressure is 25MPa. 7. **Oil Capacity** - Fuel tank: 78L, hydraulic oil tank: 58L, engine oil change capacity: 9.5L, coolant: 9.8L. 8. **Working Range** - Maximum digging radius: 5955mm. - Maximum digging depth: 3720mm. - Maximum digging height: 5460mm. - Maximum unloading height: 3835mm. - Maximum vertical digging depth: 2210mm. 9. **Bulldozer Blade Parameters** - Lifting or pushing depth: 365mm/480mm, width×height of the bulldozer blade: 1950mm×360mm.Vis mere
