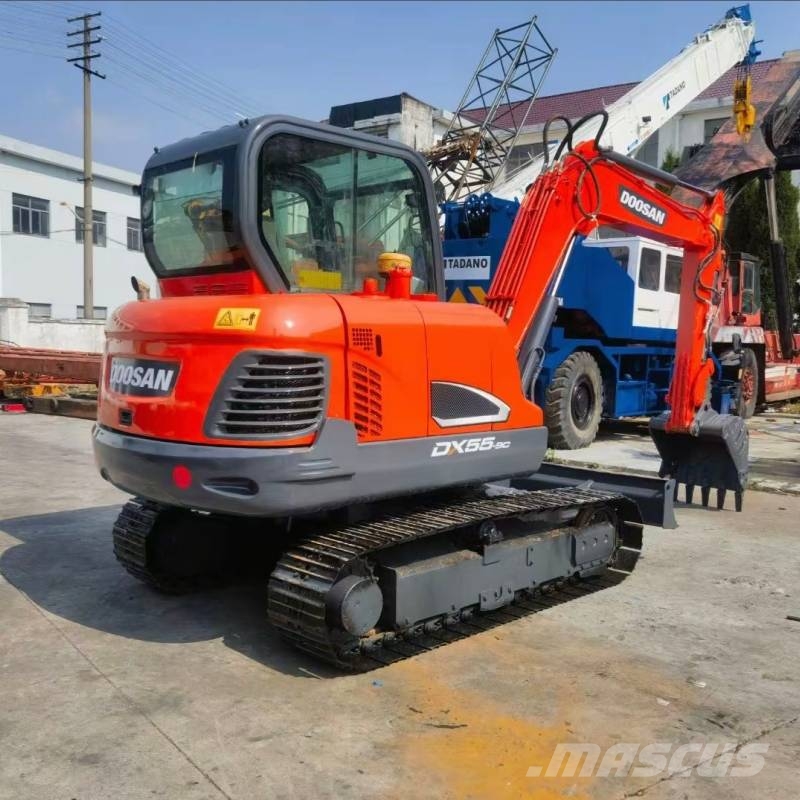

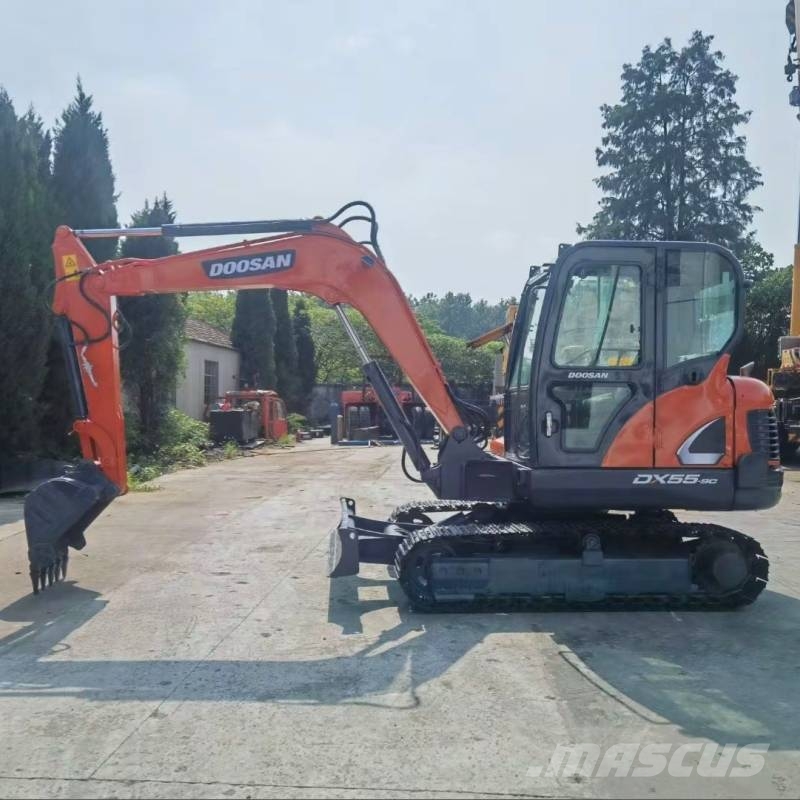

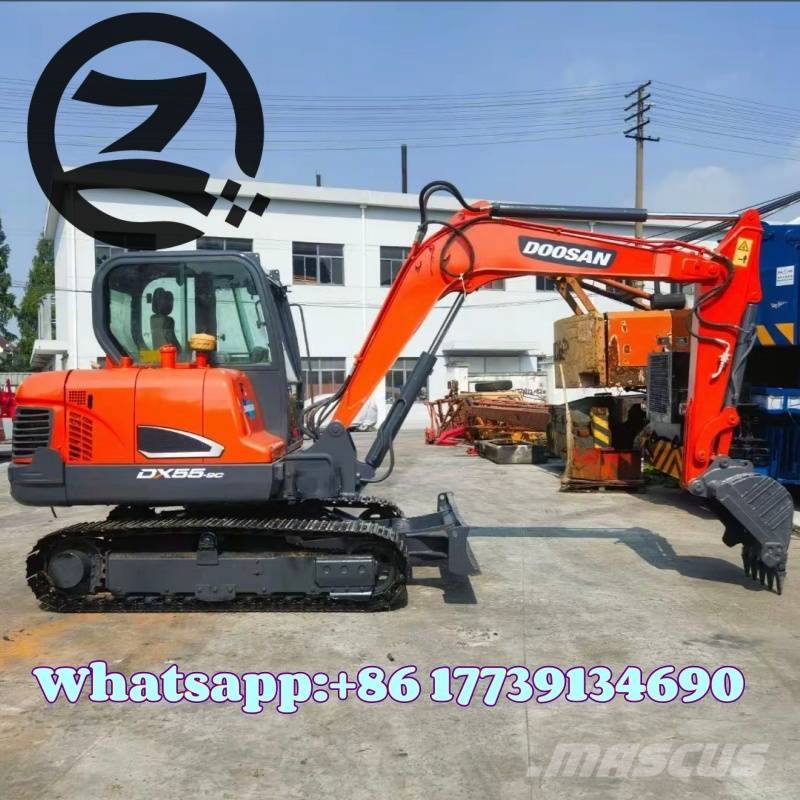

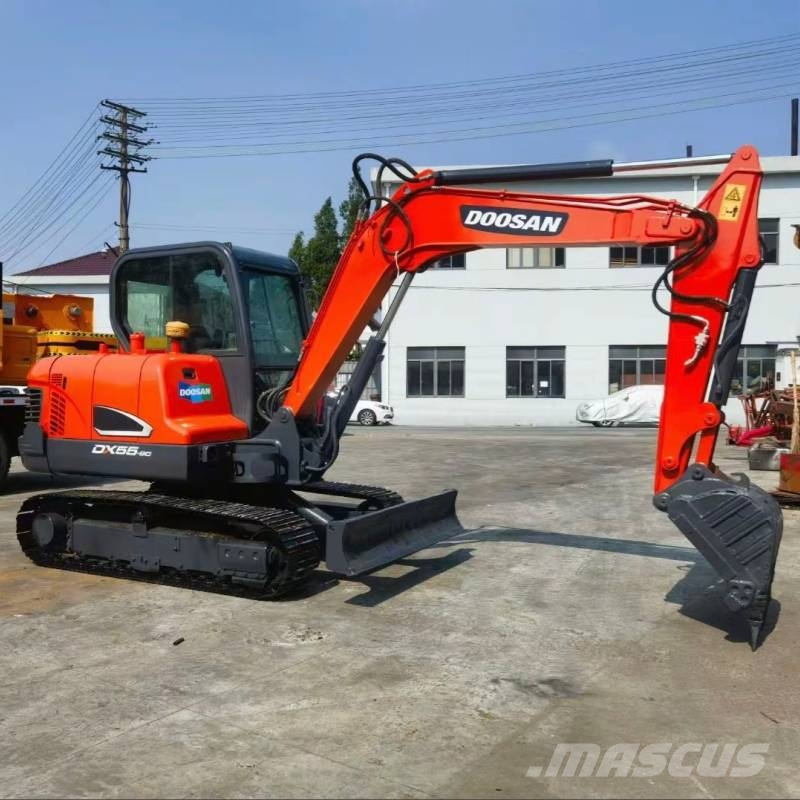

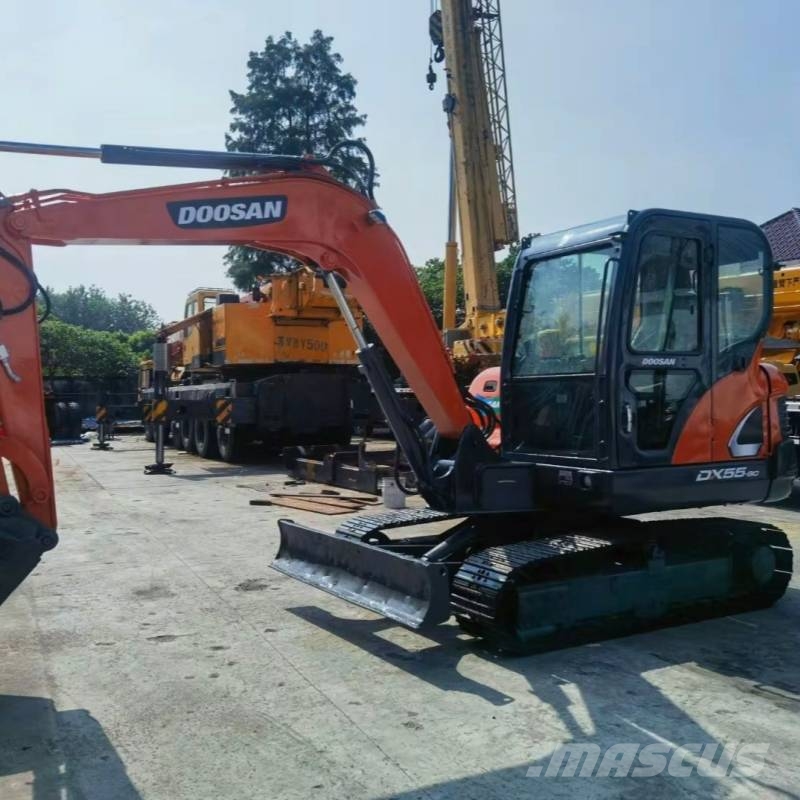

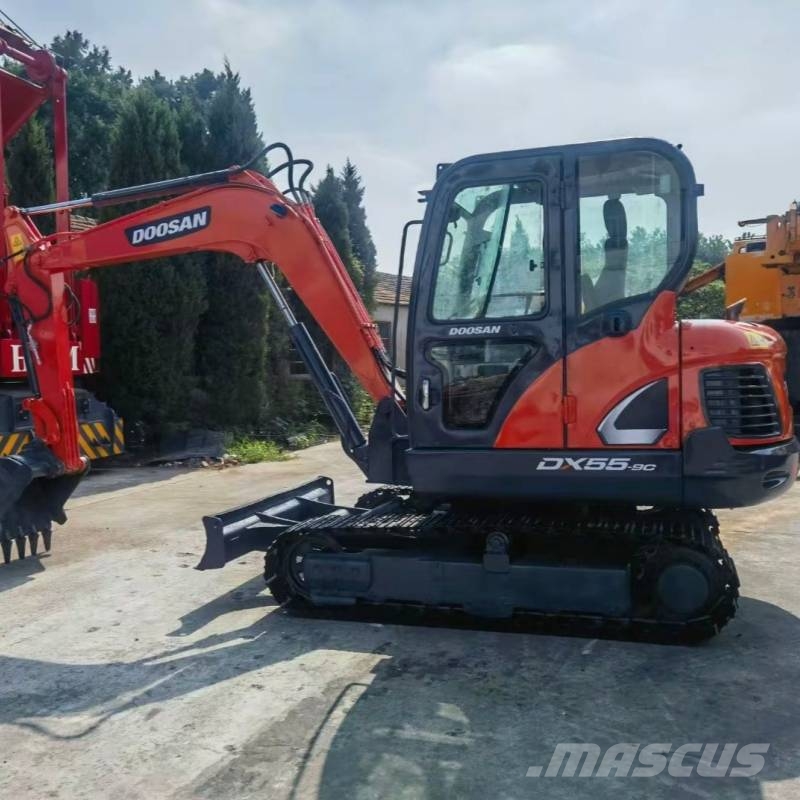

Doosan DX 55-9 C

# DOOSAN DX55-9C Crawler Excavator Specifications Model: DOOSAN DX55-9C Operating Weight: 5500 kg Bucket Capacity: 0.18 m³ Transport Dimensions (L×W×H): 5850 × 1860 × 2590 mm Track Shoe Width: 380 mm Travel Speed (High/Low): 4.3 / 2.4 km/h Swing Speed: 9.2 rpm Bucket Digging Force: 41.0 kN Arm Digging Force: 25.0 kN Max Digging Depth: 3800 mm Max Digging Radius: 6135 mm Max Dumping Height: 4110 mm Max Digging Height: 5795 mm Ground Clearance: 360 mm Ground Pressure: 27.5 kPa ## Engine Engine Model: Yanmar 4TNV94L Rated Power: 36.2 kW (48.5 HP) / 2100 rpm Displacement: 3054 cc Cylinder: 4-cylinder, water-cooled diesel Emission Standard: Stage IIIA ## Hydraulic System Main Pump Type: Variable displacement piston pump Max System Pressure: 25.0 MPa Swing Motor: Piston motor Travel Motor: 2-speed piston motor
