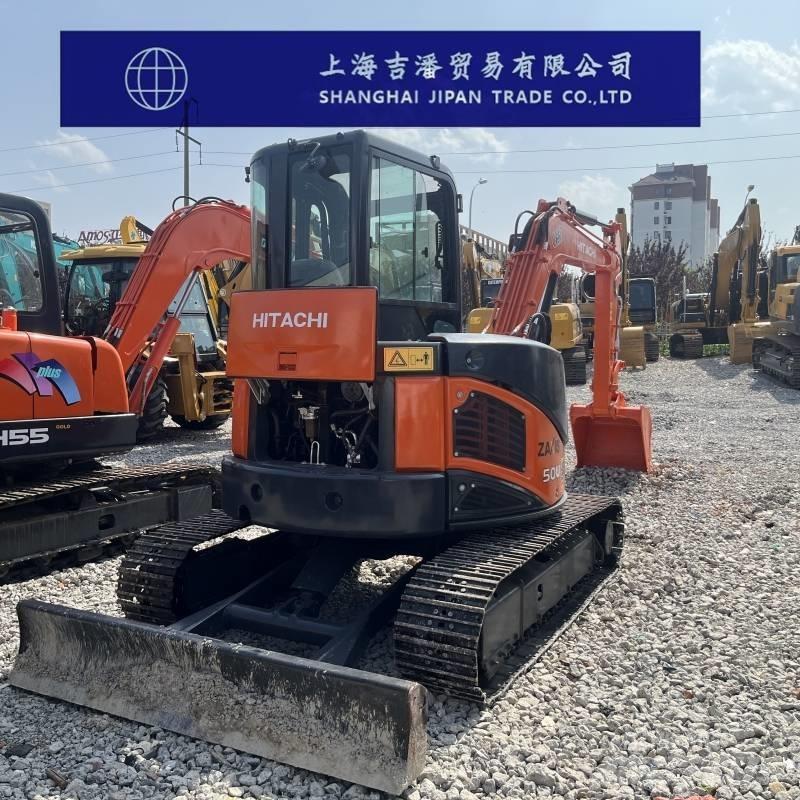

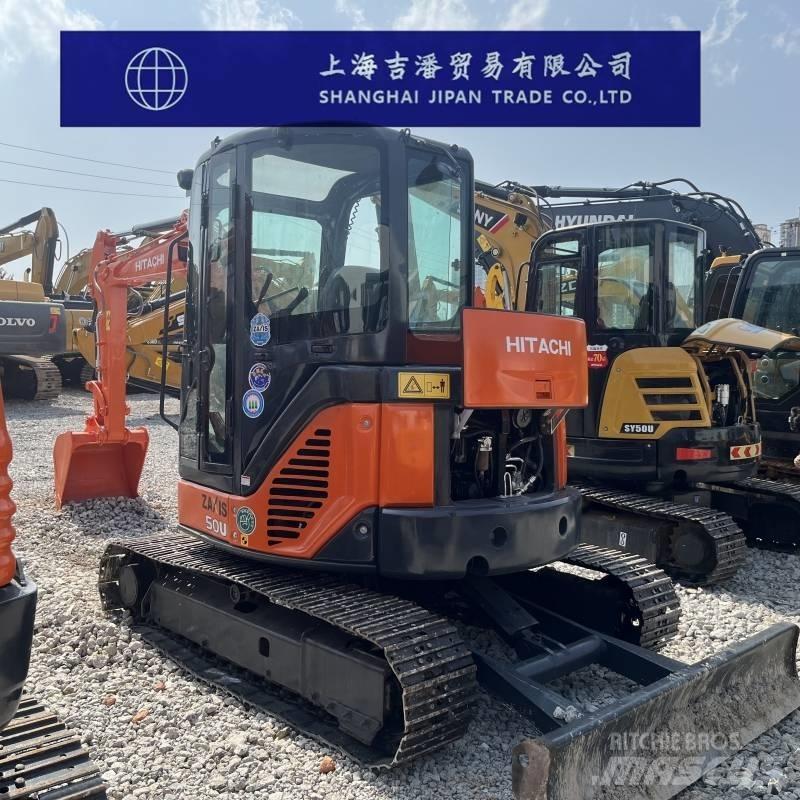

Hitachi ZX 50 U
Pris ekskl. moms
Udskriv
INFO
Produktgruppe
Minigravemaskiner
Mærke / model
Hitachi ZX 50 U
Årgang
2024
Driftstimer
620 h
Land
Kina
Generel klasse
1
2
3
4
5
Mascus ID
5C9A81DA
PRISSÆTNING
Vælg valuta
DETALJER
Lager nr.
1
Serienummer
1
Driftstype
Diesel
Seneste inspektion
2025-07-09
Antal tidligere ejere
1
Undervognens tilstand
Good Condition
Bruttovægt
5170 kg
Registreringsnummer
1
Udstødningsklasse
Trin V
Båndbredde
400 mm
Skovlkapacitet
0.19 m3
Transportmål (LxBxH)
5460 x 2000 x 2600 mm
Original farve
Original
Rækkevidde
1380 mm
Motor
Original
Motorydelse
29.8 kW (40.5 hk)
Motormærke (eller motorproducent)
Original
Tilstandsoplysninger/Garanti
1 Year
Produktionsland
Japan
Forsendelsesbetingelser
FCA, FOB, CIF, EXW
Certifikater
EPA, CE
Tilbehør
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours,24 hours, holidays and Sundays
Address: Shanghai City, China
Contact: Jason
Whatsapp: +86 13675656717
Mobile:+86 13675656717
Wechat:13675656717
Email:
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
Udstyr
Oprensningsskovl
Klimaanlæg
Supplerende hydraulik
Larvebånd Gummi
Dieselolie grovfilter
risteskovle
Rotorblink
Diesel forvarmer
Joystick
Standard graveskovl
Kabelskovl
Profilskovl / V-skovl
Tiltrotator
Øvrige oplysninger
Parameter configuration of Hitachi ZX50U excavator
Specification
The working weight of the entire machine (kg) is 5170
Bucket capacity (m³)0.19
Boom length (mm) : 2850
The length of the boom (mm) is 1380/1690
Origin: Japan
Tonnage (tons)5
Joint venture/import by manufacturers
Power Traditional Power
Bucket backhoe
Joint venture/import by manufacturers
Power Traditional Power
Performance
Rotational speed (rpm) : 9.3
Walking speed (km/h)2.6/4.2
Climbing ability (%)58% (30 degrees)
Ground specific pressure (Kpa)32
Bucket digging force (kN)36.8
The digging force of the boom (kN) is 24/21
Power system
Engine model: Yanmar 4TNV88
Rated power (kw/rpm)29.8/2500
Maximum torque (N.m)138/1500
Displacement (L)2.2
Number of cylinders (4)
Cylinder diameter × stroke (mm)88×90
The cooling method is water cooling
The working style is straightforward
Hydraulic system
Main pump type variables: Axial piston pump ×1+ gear pump ×1
The maximum flow rate of the main pump (l/min) is 125+12.5
Working hydraulic circuit (Mpa)24.5
Pilot oil circuit (MPa)4.1
The pilot pump flow rate (L/min) is 12.5
Boom cylinders - number × cylinder diameter × stroke (mm)1-95×691
Bucket rod cylinder - number × cylinder diameter × stroke (mm)1-80×731
Bucket cylinder - number × cylinder diameter × stroke (mm)1-75×551
Oil capacity
Fuel tank (L)70
Hydraulic oil tank (L)59
Hydraulic system (L)90
Engine oil change volume (L)8.6
Coolant (L)6.6
Main body size
The total length of transportation (mm) is 5460
The total transportation width (mm) is 2000
The total transportation height (mm) is 2600
The total height of the cab (mm) is 2600
The width of the vehicle (mm) is 2000
The ground clearance of the counterweight (mm) is 605
Track grounding length (mm) : 2000
The total length of the track (mm) is 2540
Track plate width (mm) : 400
Total width of the tracks (mm) : 2000
Track gauge (mm)1600
Minimum ground clearance (mm)335
The minimum turning radius (mm) of the front working device is 1790
The rear end turning radius (mm) is 1080
Scope of work
Maximum excavation radius (mm) : 6000
Maximum excavation depth (mm) : 3600
Maximum excavation height (mm) : 5640
Maximum unloading height (mm) : 4000
Maximum vertical excavation depth (mm) : 2820
Boom rotation Angle (left/right °)80/60
The bulldozer shovel lifts or deepens (mm)425/335
