Unic B-506-5.2

Pris ekskl. moms

Ring for pris

FavoriteFavorit
shareDel
Save searchGem søgning
Udskriv

INFO

Produktgruppe
Minikraner
Mærke / model
Unic B-506-5.2
Årgang
2016
Driftstimer
767 h
Maskinplacering
Duisburg, Nordrhein-Westfalen
Land
Tyskland
Generel klasse
1
2
3
4
5
Mascus ID
470353FC

DETALJER

Antal tidligere ejere
1
Bruttovægt
5150 kg
Maksimal løftekapacitet
5000 kg
Længde på bom
1570 cm
Max løftekapacitet ved enden af bommen
900 kg
Bomlængde på kranen
1570 cm
Løftehøjde
1900 cm
Kroghøjde - horisontal bom
1600 cm
Kroghøjde - skråstillet bom
300 cm
Transportmål (LxBxH)
4870 x 1400 x 2035 mm
Dækmærke
NM-Antriebsketten
Produktionsland
Japan
Forsendelsesbetingelser
FCA, CFR, EXW
Certifikater
CE, TÜV
Udstyr
Krog blokke
3-rollig, max. 5,0 t 1-rollig, max. 1,7 t Einseilhaken, max 0,9 t
Øvrige oplysninger

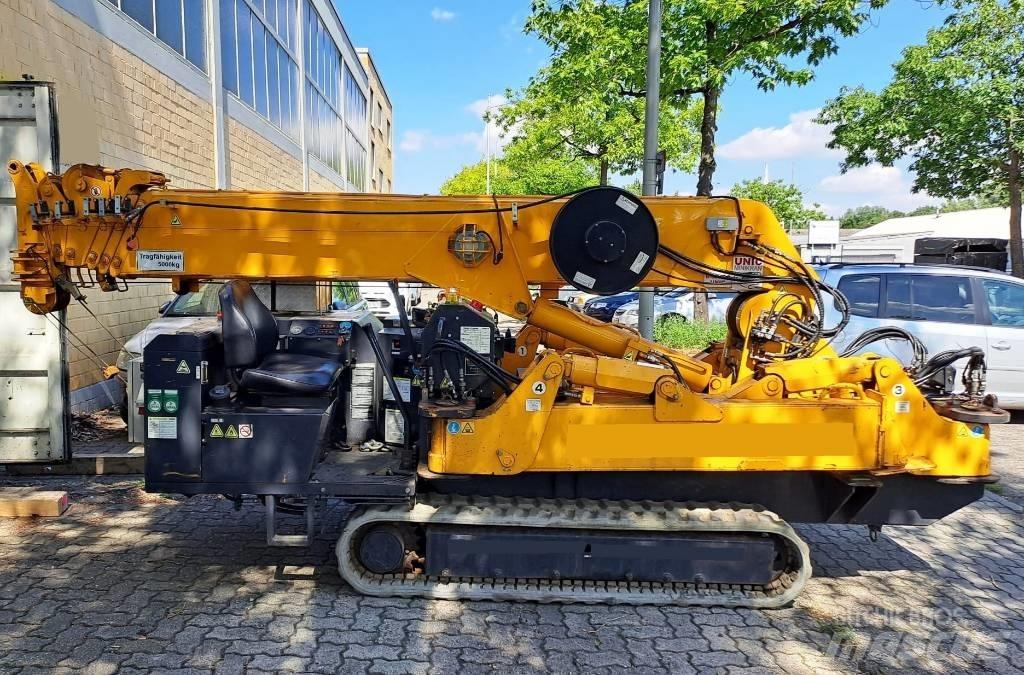

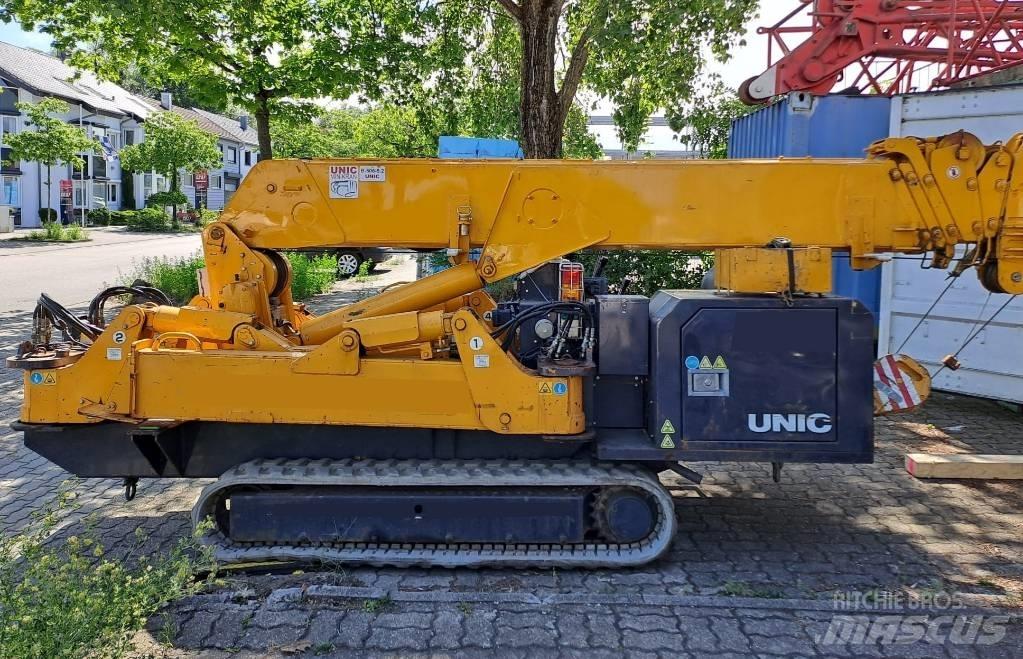

UNIC mini crawler crane, model B-506-5.2, year 2016, (used) only 767 h working hours incl. German DEKRA approval max. loading capacity 5,0 t TECHNICAL DETAILS: Max. Loading 5.0 t x 2.0 m Max. Hook height 19.0 m Max. Working area 16.5 m Dimensions: length 4870 mm (L) x 1400 mm (W) x 2035 mm (H) Weight approx. 5.150 kg STANDARD EQUIPMENT: 3.93 – 15.71 m telescopic main boom fully hydraulic Boom head with 3-sheaves 3,0 m folding jib with sheave head and searcher hook, max. 850 kg, hydr. adjustable 0-20° 1,0 m jib, max. 1,7 t, hydr. adjustable 0-20° 1x hoist winch German rope, low-spin, fine braided 360 ° rotation range (continuous), Diesel engine 18 kW (24,5 HP) Electric drive 380 V (AC 50/60 Hz, power 7,5 kW) with cable 50,0 m Radio remote control Safe load indicator Rayco Wylie Systems i4500 Variable footprint, computer controlled, variable positioning of each outrigger length (mininum, half, maximum), automatic detection of the outrigger position and calculation of the max. load of each outrigger Overwinding alarm, computer controlled intelligent voice warning system working lights, driver´s seat, Hydrostatic drive, step-less forward and reverse Speed 0 – 3,0 km/h, Track ground length 1.800 mm, Track ground width 300 mm Track ground pressure 0,46 kg/cm2 Hook block 3-sheaves, max. loading capacity 5,0 t Hook block 1-sheave, max. loading capacity 1,7 t Ball, max. loading capacity 900 kg Superstructure yellow, Chassis Black-grey Ideal for limited work areas or confined access to the work area and an intelligent solution and alternative to the conventional mobile crane (large crane) Various mini crane models with lifting capacities of 0.99 - 10.0 t lifting heights up to 31.0 m Used mini crane models on demand until 8.0 t loading capacity.Vis mere

Mini & Mobile Cranes Körner GmbH

Alte Kaserne 23 47249 Duisburg Nordrhein-Westfalen Tyskland
