Fabo MDMK-03 – Concassage secondaire et criblage

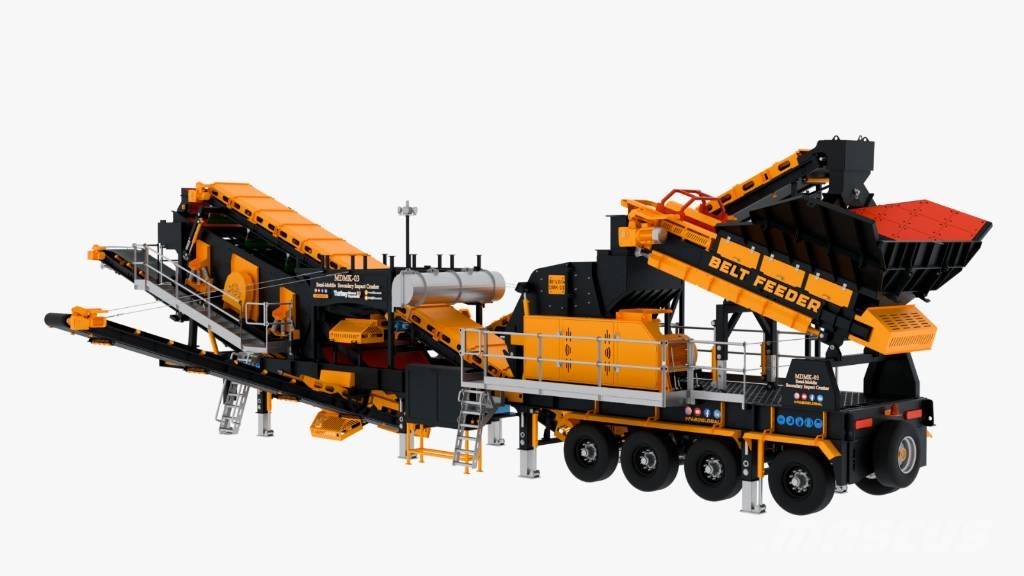

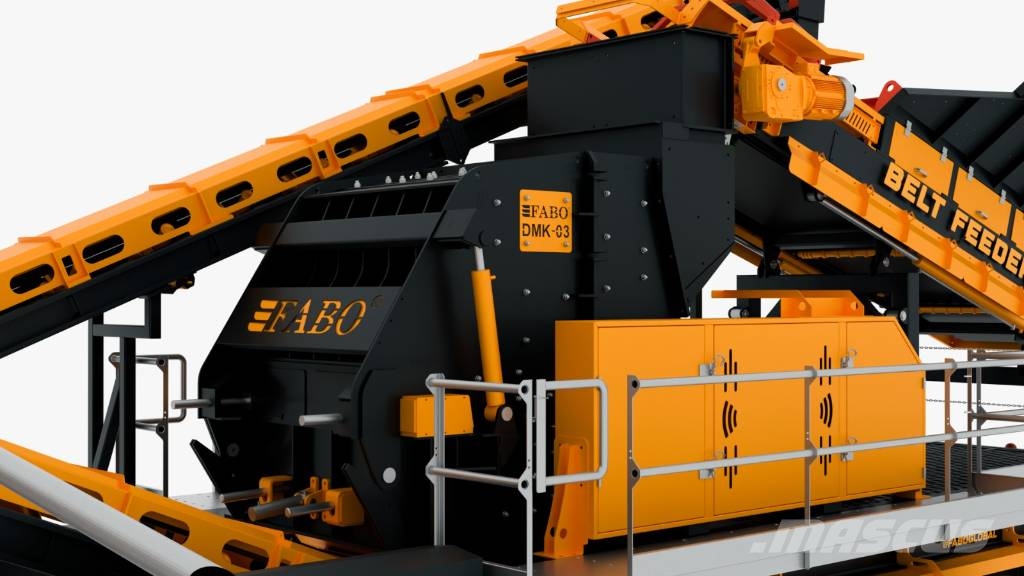

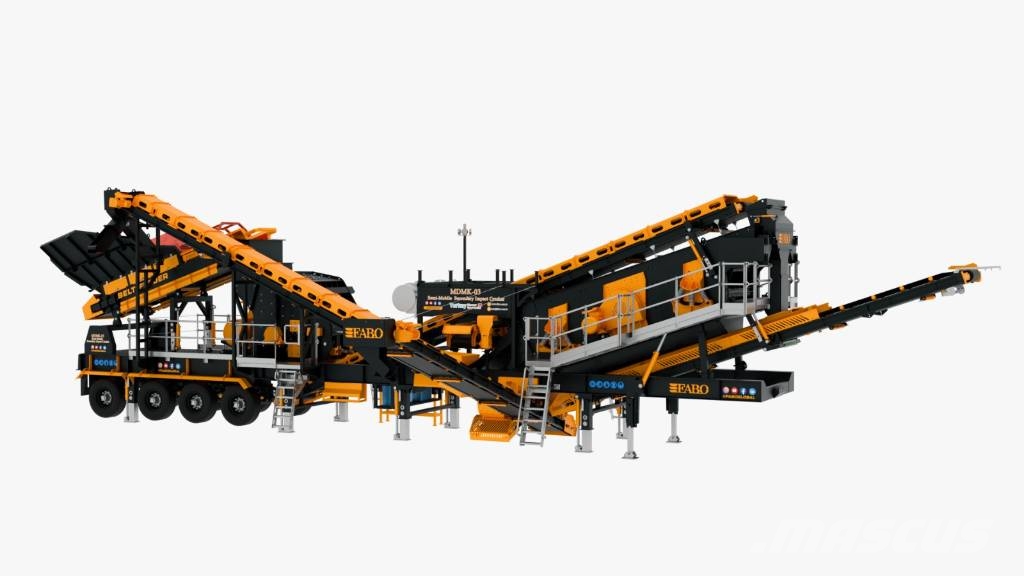

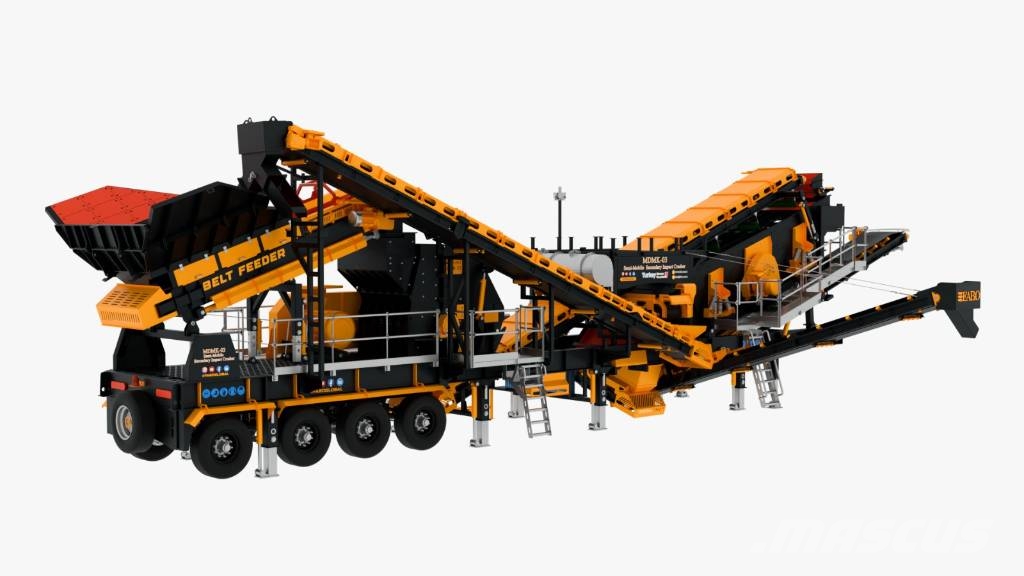

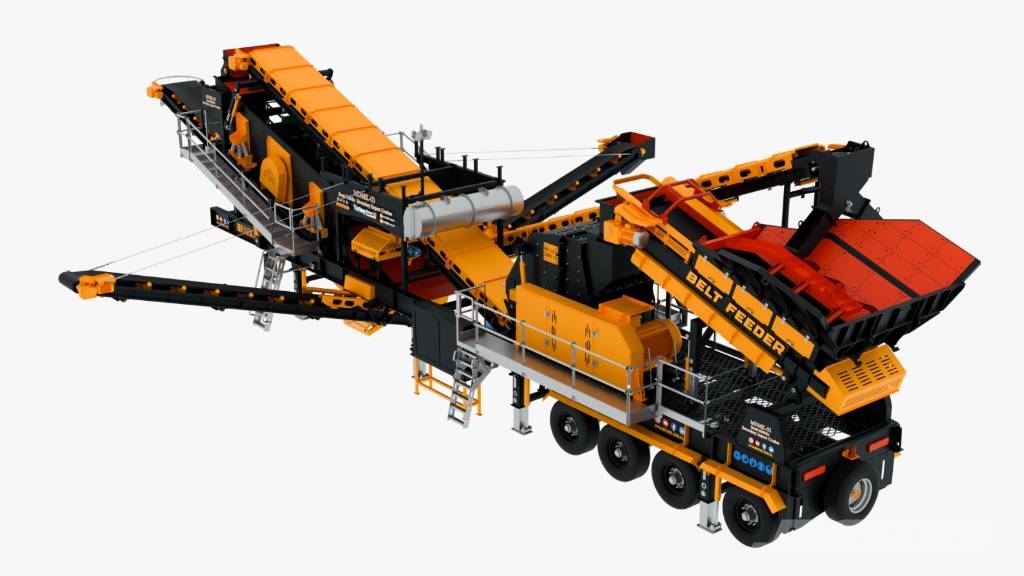

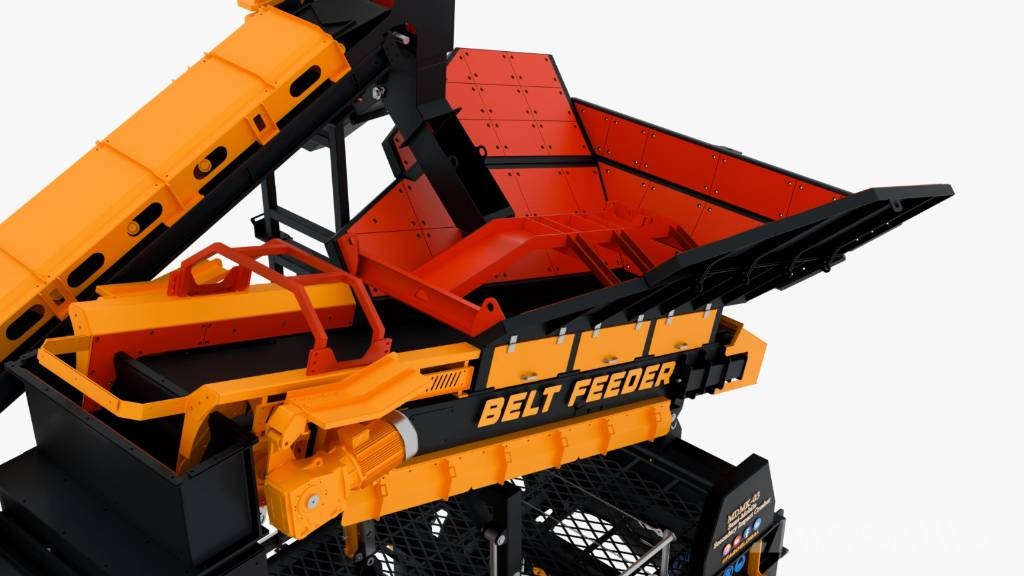

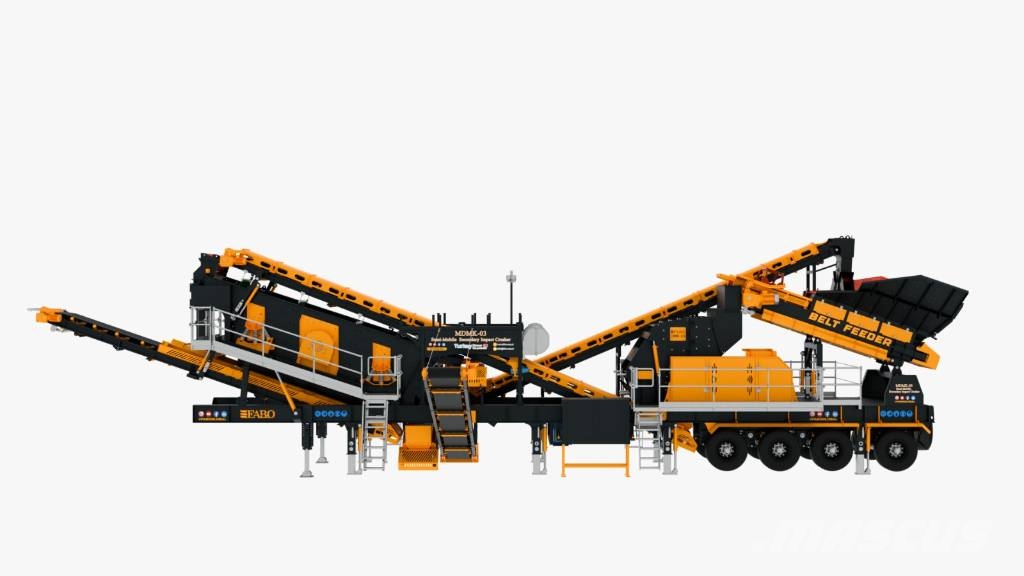

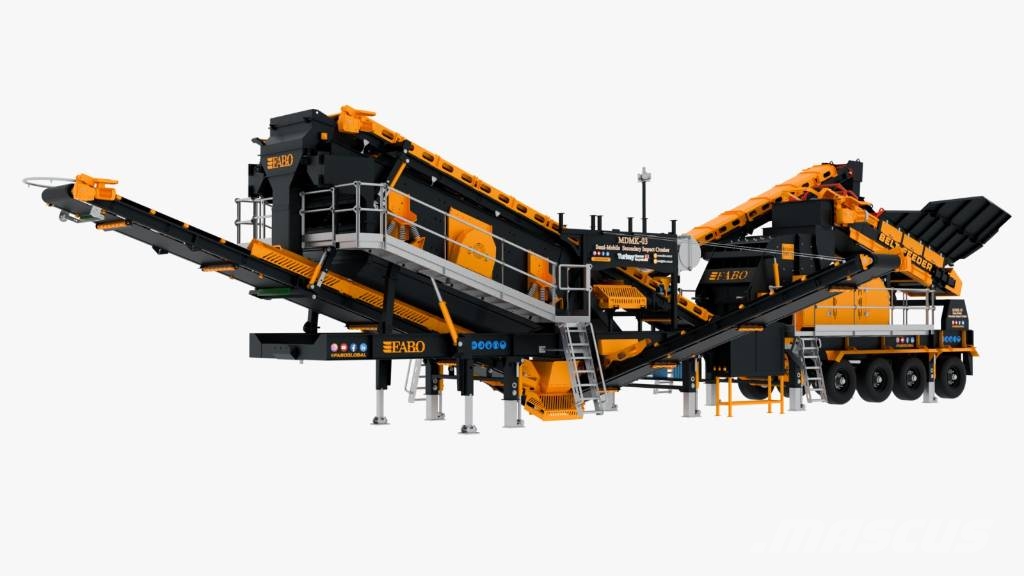

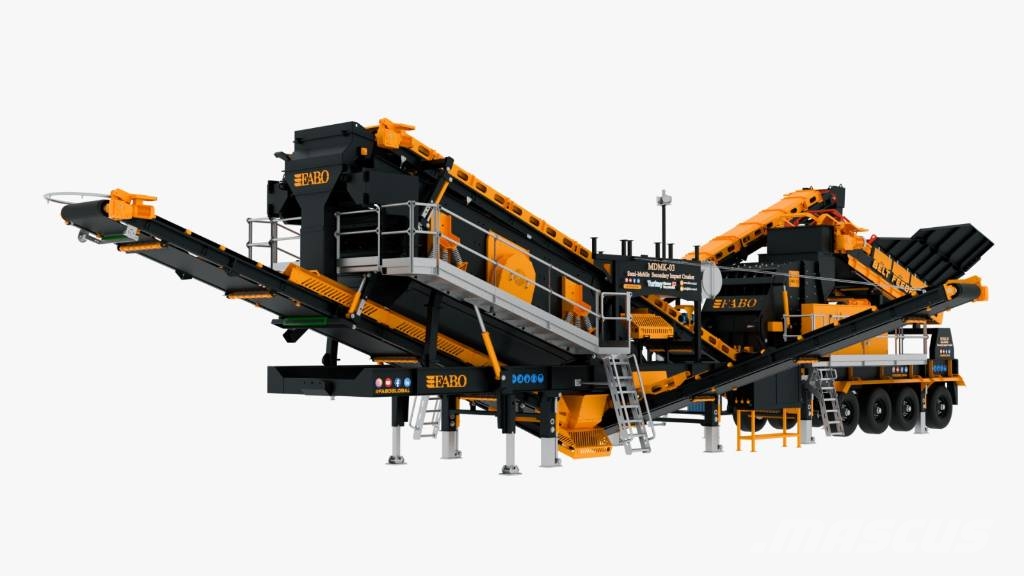

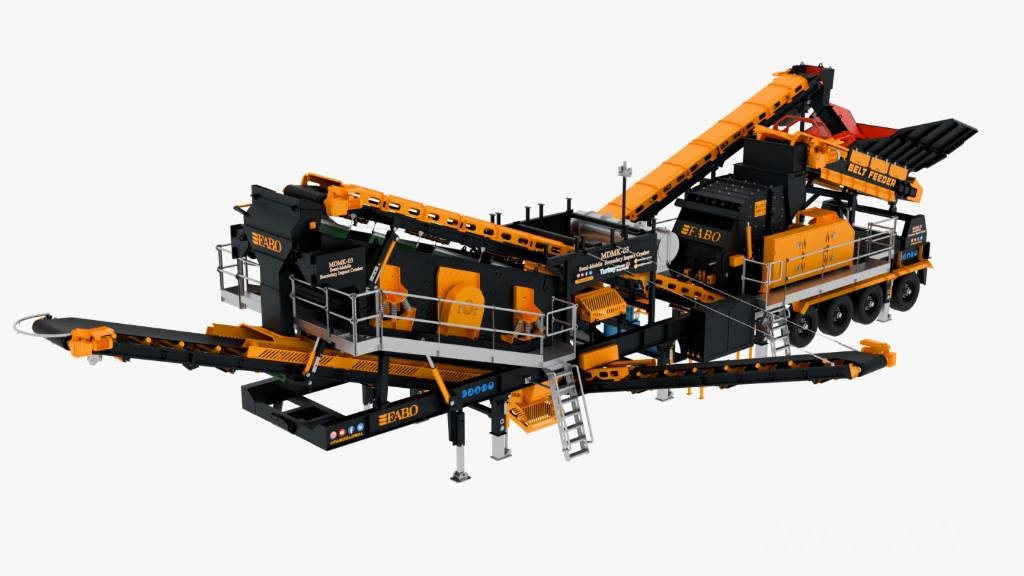

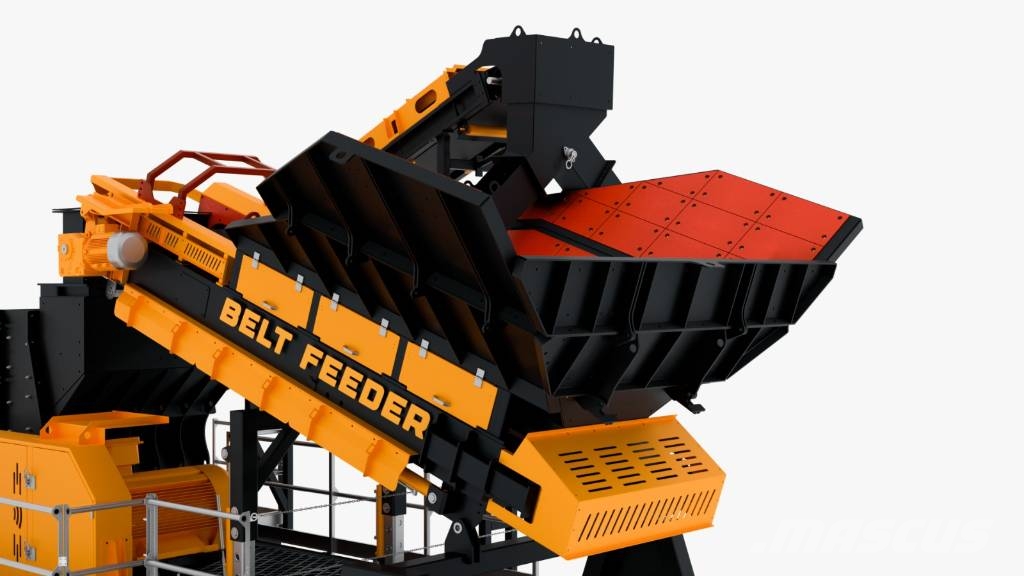

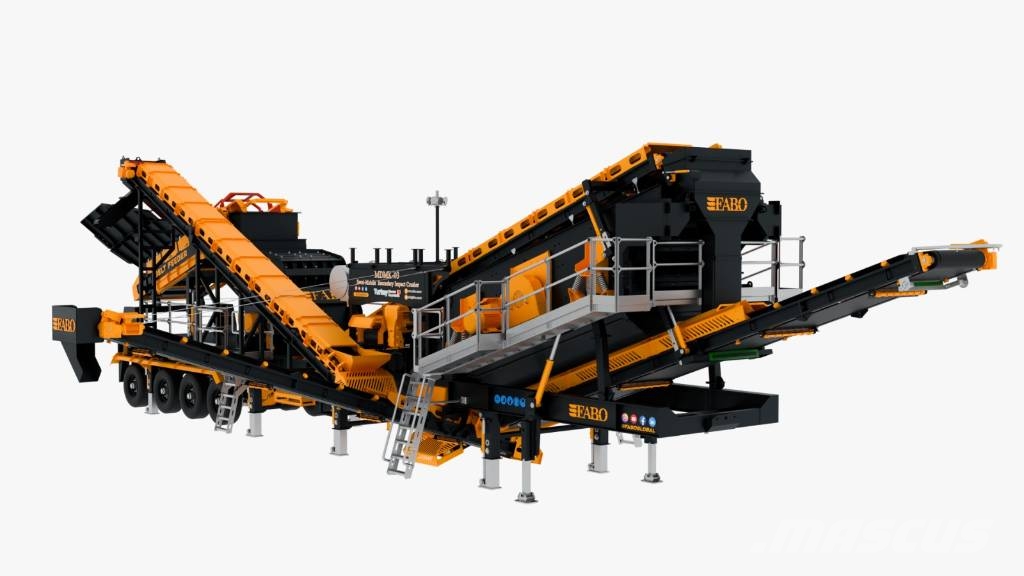

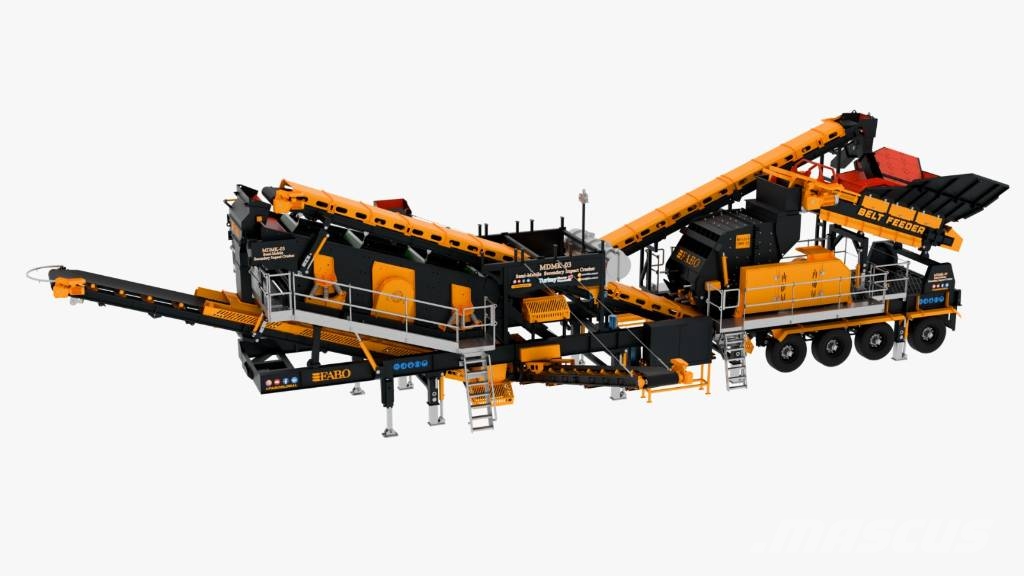

The FABO MDMK-03 is a semi-mobile crushing and screening plant that integrates a feed hopper, secondary impact crusher, vibrating screen, and conveyor system on a single chassis. It is designed to process medium-hard and hard materials such as limestone, dolomite, granite, and basalt into high-quality aggregates for asphalt and concrete production. Through the closed-circuit return system, oversize material from the screen is conveyed back to the crusher, helping achieve well-shaped, cubic aggregates with consistent quality. ### Key Features - 8 m³ Lined Feed Hopper: Direct feeding by truck, wheel loader, or excavator. - Belt Feeder:** Ensures a regular and controlled material flow. - Hydraulic Crusher Body Opening: Facilitates maintenance and servicing. - External Crusher Setting Adjustment: Allows convenient adjustment of the crusher plates. - Easy Wear Part Replacement: Simplifies the replacement of blow bars and wear liners. - Fully Automated Control System: Supports efficient and coordinated plant operation. - Dust Suppression System: Helps minimize dust emissions during operation. - Hydraulic Support Legs: Provide stability during operation. - Wheeled Chassis with Axles: Designed for semi-mobile applications. - Maintenance Platforms and Access Ladders: Provide convenient access for inspection and servicing. - Optional Diesel Generator: Available for applications requiring an independent power supply. - Installation and Operator Training: Support proper commissioning and efficient operation. Technical Specifications Specification Details Capacity 250–350 t/h Maximum Feed Size 450 mm Feed Hopper 8 m³, lined Belt Feeder Dimensions 1,000 × 10,600 mm Belt Feeder Type Chevron belt, 12 mm Feeder Motor Power 2 × 7.5 kW Feeder Speed 47 rpm Crusher Type DMK-03 Secondary Impact Crusher Crusher Dimensions 1,120 × 1,500 mm Crusher Motor Power 250 kW Crusher Motor Speed 1,450 rpm Vibrating Screen Dimensions 2,200 × 5,500 mm Screen Motor Power 30 kW Screen Motor Speed 1,450 rpm FABO MDMK-03 – Efficient Crushing, Reliable Performance, High-Quality Aggregates.
