Liebherr LRB255

Pris ekskl. moms

Ring for pris

Compnay LOGO
Images10

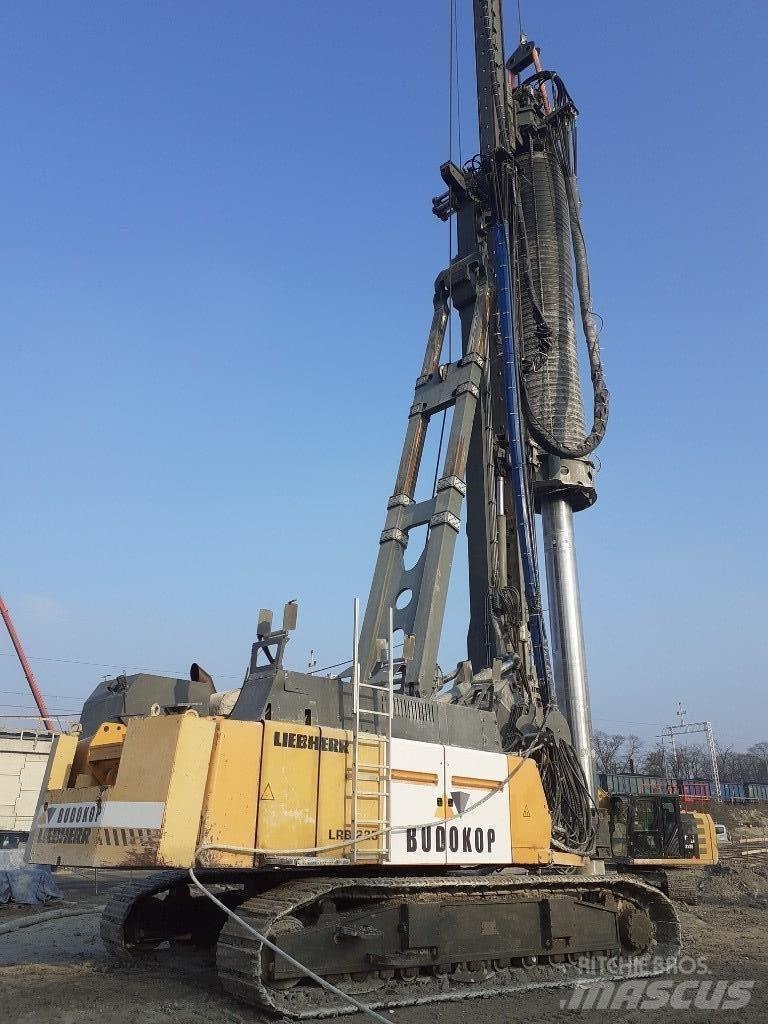

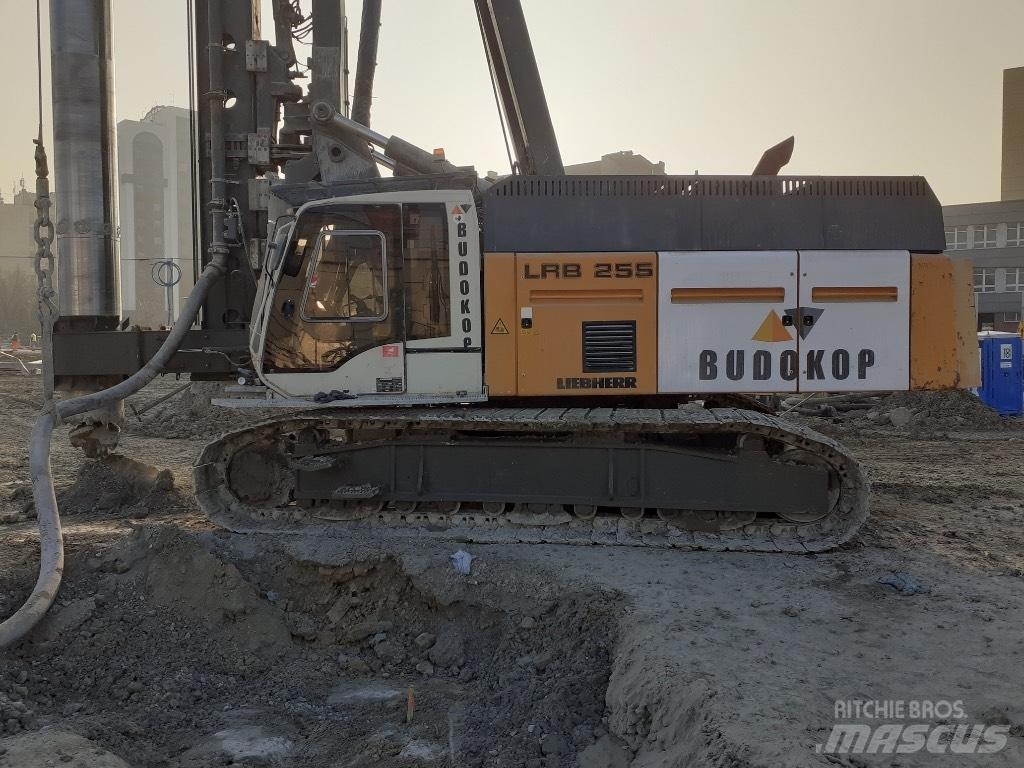

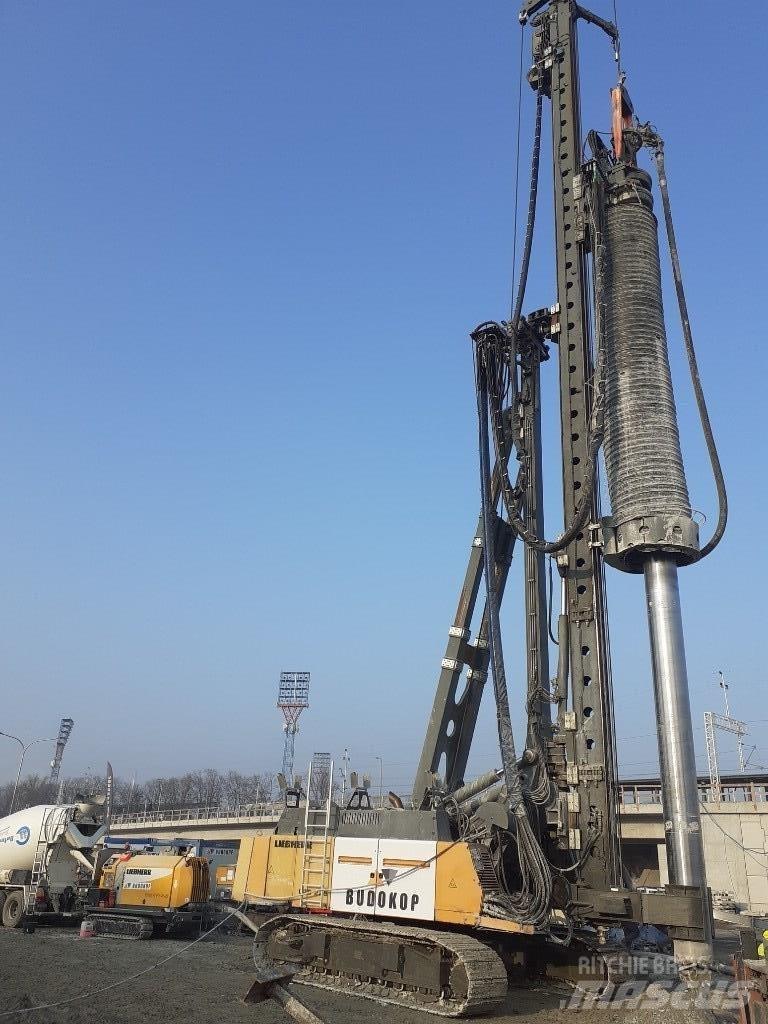

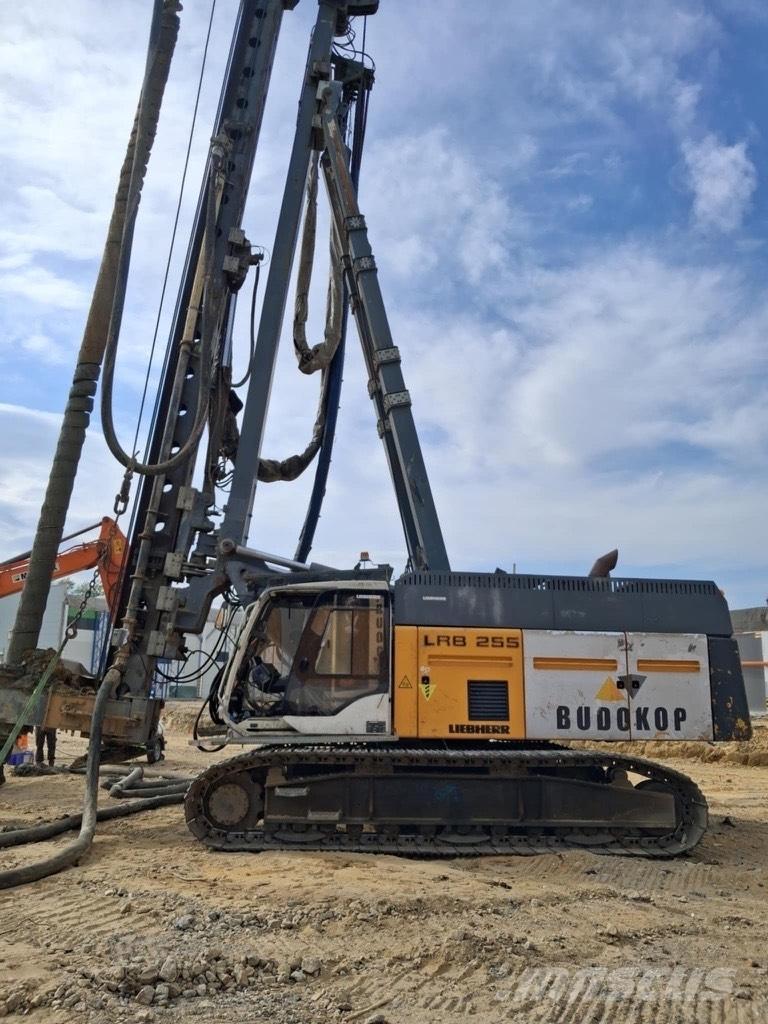

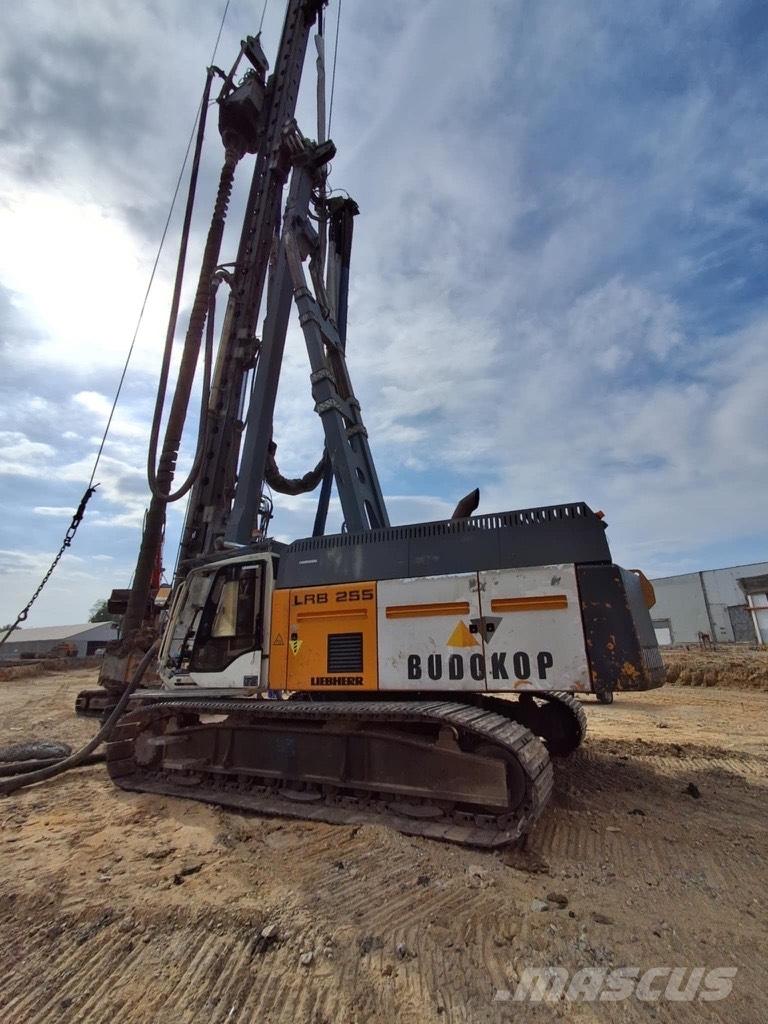

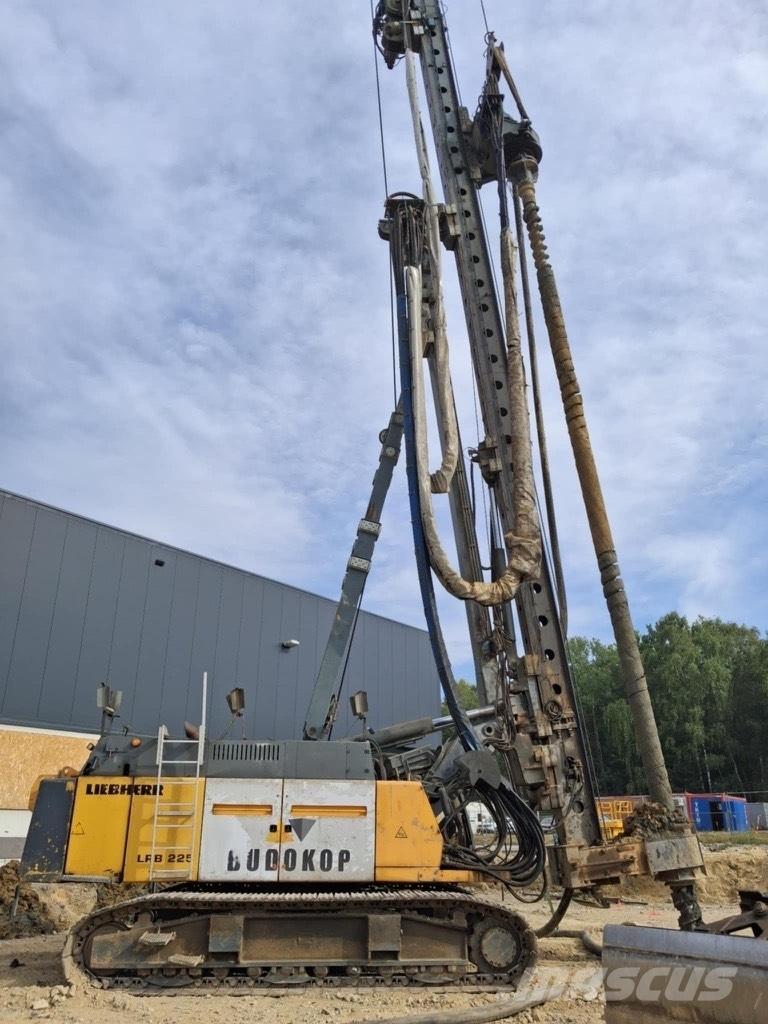

Liebherr LRB255 Pæle- og rammemaskiner
Liebherr LRB255 Pæle- og rammemaskiner
Liebherr LRB255 Pæle- og rammemaskiner
FavoriteFavorit
shareDel
Save searchGem søgning
Udskriv

INFO

Produktgruppe
Pæle- og rammemaskiner
Mærke / model
Liebherr LRB255
Årgang
2008
Driftstimer
9500 h
Maskinplacering
Elblag, warmińsko-mazurskie
Land
Polen
Generel klasse
1
2
3
4
5
Mascus ID
A3C4C979

DETALJER

Serienummer
111606
Bevægelsestype
Sporbundet
Produktionsland
Østrig
Forsendelsesbetingelser
EXW
Øvrige oplysninger
LRB 255 - 111.606 year 2008 BA 250 - 110.083 year 2008 DBA 300 - 110.348 CCFA-VDW year 2014 Serial no. 111606 Year of manufacturing 2008 Operating hours Approx. 6,200 Engine power (kW) 670 kW Diesel Winch configuration 1 x 20 t Description of machine 1.0 Superstructure 670 kW diesel engine, stage 2/Tier 2, with 12,5 t counterweight 2.0 Superstructure additional counterweight 7,3 t 1 3.0 Undercarriage LRB 255 - B7 telescopic, incl. crawler pads 900 mm 4.0 Main winch 20 t with free fall, 30 mm 5.0 Painting in LIEBHERR-design 6.0 Tool set standard Leader system 7.0 Litronic load indicator for crowd system 8.0 Leader basic unit LRB 255, 17 m, system 440 mm 9.0 Leader extension 4 m with rope crowd system 45 t 10.0 Leader extension LRB 255, 3 m - 3 pcs 11.0 Leader foot hydraulic 12.0 Leader foot plate 1270 x 370 mm 13.0 Leader top for kelly rope 14.0 Leader top for pile/auxiliary rope 15.0 Pile/auxiliary winch 8 t, 20 mm 16.0 Pile/casing guide hydraulic LRB 17.0 Torque support 18.0 Concrete supply hose line LRB, for leader system 440 mm   Application package 19.0 Constant tension for one main winch 20.0 Main winch contact roll 21.0 Litronic working depth indicator for main winch 22.0 Hook (single) 8 t (20 mm) Crane operation 23.0 Wire rope 90 m, 1770 N/mm² Drilling equipment 24.0 Additional hydraulics for drilling equipment Casing oscillating 25.0 Additional hydraulics for casing oscillator 26.0 Leffer guide rails Vibrator equipment 27.0 Cooler for vibrator-gear oil 28.0 Additional hydraulics for vibrator Data display- and recording features 29.0 Process data recorder PDE 30.0 Concrete flow meter Self assembly features 31.0 Counterweight assembly device   Service package 32.0 Central lubrication leader sledge 33.0 Compressor for air tools 34.0 Diesel refuelling pump electric 35.0 Litronic GSM service-modem Operator's comfort 36.0 Cabin air-conditioner 37.0 Slide window for cabin Other 38.0 Services included in the purchase • Load chart. • Documentation in Polish language. BA 250 - 110.083 Serial no. 110083 Year of manufacturing 2008 Operating hours Approx. 2,000 1.0 Mitnehmereinheit für Kelly DM 394 auf BA 250 2.0 Single rotary 250 kNm 3.0 Cardan joint 1 Equipment for CFA and full displacement drilling 4.0 Concrete swivel NW 125 Drilling tools and accessory 5.0 Adapter piece universal (11276808) 1   DBA 300 - 110.348 for CCFA/VDW Serial no. 110348 Year of manufacturing 2014 Operating hours Approx. 2,000 1.0 Double rotary model DBA 300-2, 300/150 kNm, octagonal joint size 190 mm Drilling equipment 2.0 Hose protection for DBA 160/200/300 3.0 Switch valve concrete or compressed air for DBA 160/200/300 4.0 Transport holder for double rotaryVis mere
