SmartTEH ST-20/750

Pris ekskl. moms

Ring for pris

Compnay LOGO
Images9
SmartTEH ST-20/750 Rullebånd
SmartTEH ST-20/750 Rullebånd
SmartTEH ST-20/750 Rullebånd
FavoriteFavorit
shareDel
Save searchGem søgning
Udskriv

INFO

Produktgruppe
Rullebånd
Mærke / model
SmartTEH ST-20/750
Årgang
2019
Driftstimer
220 h
Ekstra valgmuligheder
Ex demo
Land
Letland
Generel klasse
1
2
3
4
5
Mascus ID
055DF23C

DETALJER

Antal tidligere ejere
1
Fuld service historik
Ja
Bruttovægt
40000 kg
Bevægelsestype
Mobil
Forarbejdningskapacitet
750 ton/t
Motor
diesel type KDI
Motormærke (eller motorproducent)
Kohler
Transportmål (LxBxH)
28.5 x 3.9 x 3.85 mm
Produktionsland
Letland
Forsendelsesbetingelser
EXW
Tilbehør
remote control, remote diagnistics
Udstyr
Kontrol system
Øvrige oplysninger

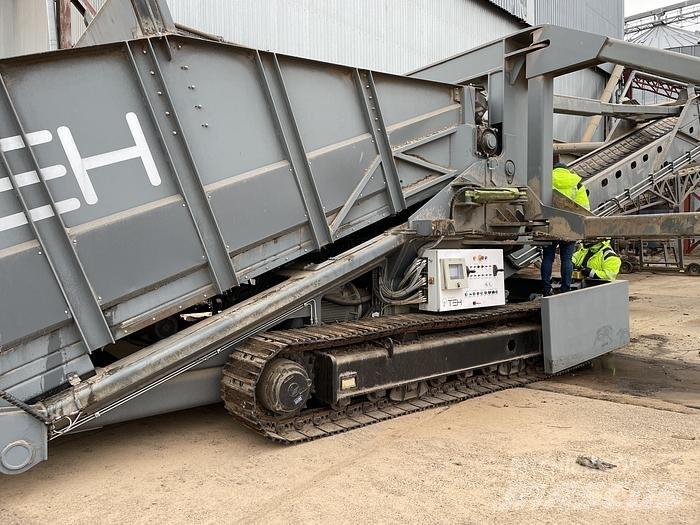

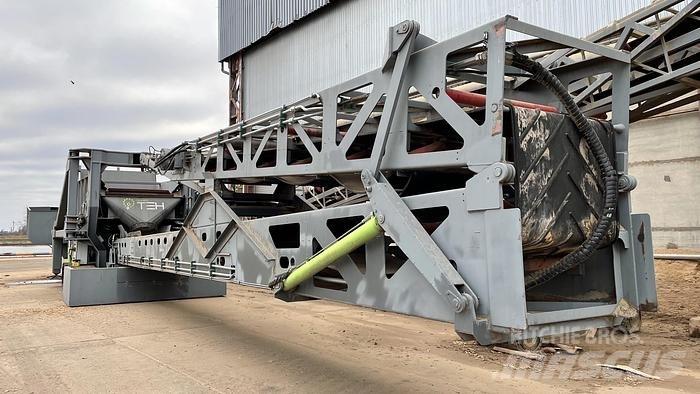

Mobile radial stacker/feeder, or shiploader. Designed for material of bulk density of 750 kg/cbm, equipped with wireless remote control and touchscreen control panel. Diesel engine is used for travelling, and electrical power is necessary for all the other functions. Maximum capacity with boom lifting angle at 2 degrees is 1150 cbm/h; maximum with boom angle of 27 degrees is 720 cbm/h. It is equipped with two outriggers, capable of supporting operation with boom turned to either side. Boom maximum angle of turn is 60 degrees to both sides, or 17 meters from one side to another. Maximum boom height is 12 meters, or 27 degrees. Boom is foldable. Shiploader is equipped with crawlers, maximum travelling speed is 220 m/h. Feed hopper can be lifted up till 6.5 degrees, hopper sides can be tilted upwards to facilitate feeding of material to conveyor 1. Conveyor 1 (receiving from hopper and delivering to boom conveyor) is speed-regulated, depending on amount of material and to prevent from overfeeding of boom conveyor. All main bearings have temperature measuring and monitoring system. There is a remote connection available via mobile cellular network, which allows the manufacturer to assist with errors and troubleshooting. Apart from possibility of receiving material directly from trucks, the shiploader can be used with feeding system of any kind, like extra conveyors or wheel loaders, etc. Video: https://cloud.aquila-harborcranes.com/s/bJFgyCCzXJMN2mK Photo: https://cloud.aquila-harborcranes.com/s/itz6B6ecnnHzZAFVis mere

Aquila Harbor Cranes SIA

Getlinu 7A LV-2121 Rumbula Stopiņu novads Letland
