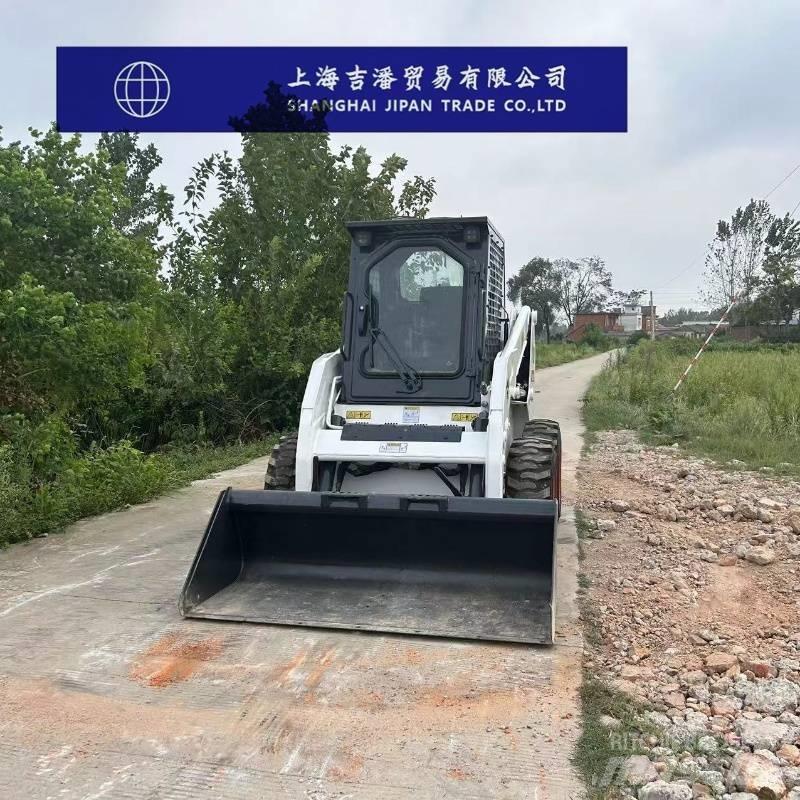

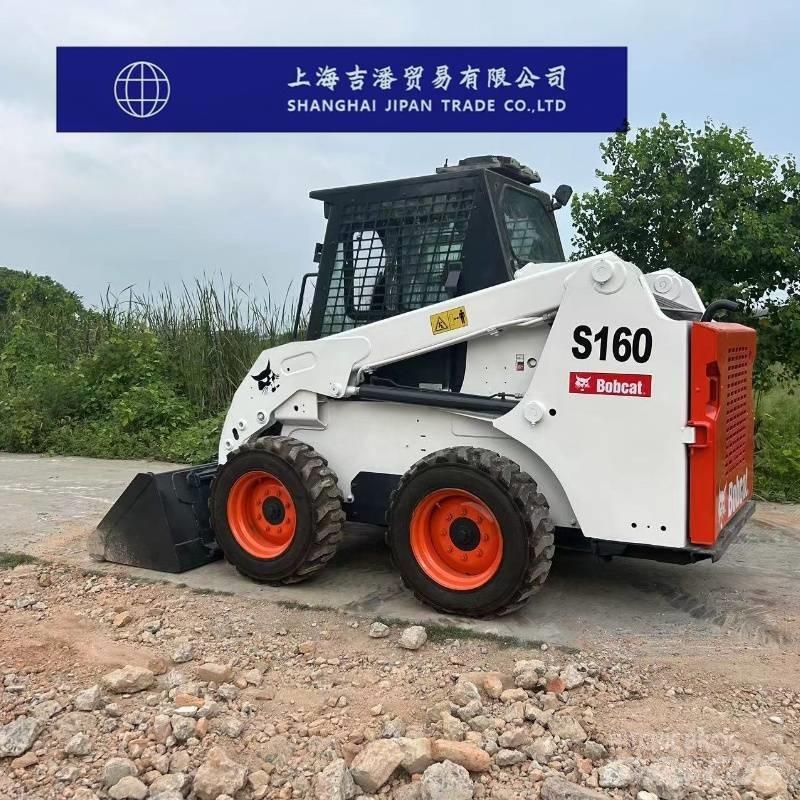

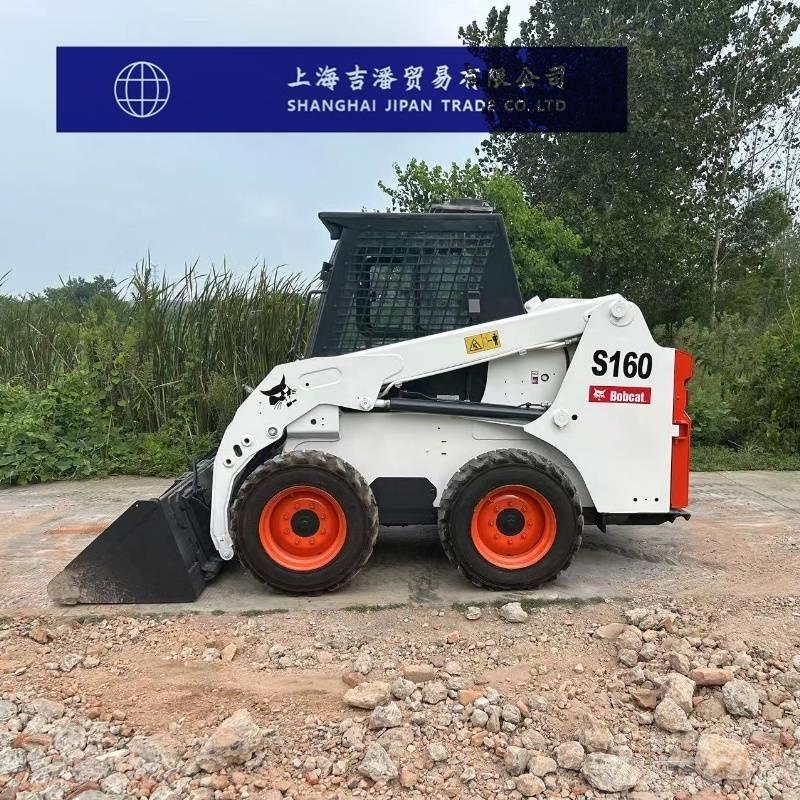

Bobcat S 160

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Parameters and configuration of the Bobcat S160 skid steer loader Basic performance Rated loading capacity (kg) : 748 Overturning load (kg) : 1497 The total weight of the machine (kg) is 2774 The lifting mechanism form is radial lifting Rated loading bucket capacity (m3)0.33 Load capacity (tons) : Less than 0.8 tons Engine The engine model is Kubota Kubota/V2003 Working form: Turbocharged Diesel direct injection Rated power (kw/rpm)44.9 Maximum torque (N.m)163.8/1800 Displacement (L)2.6 The number of cylinders is 4 Through performance Maximum driving speed (km/h)11.8/17.9(dual-speed option available) The tire size is 10×16.5 Forward turning radius (with bucket) (mm)2166 Departure Angle (°)23 Hydraulic system System safety pressure (bar)228 System rated flow rate (L/min)64/ High flow rate 100 (optional) Oil capacity Fuel tank (L)90.8 Scope of work Maximum unloading height (mm)2197 Unloading distance (at the maximum height) (mm)461 The maximum height (mm) of the bucket hinge pin is 2908 The unloading Angle (°) at the maximum unloading height is 44 The retraction Angle (°) of the bucket on the ground is 25 The retraction Angle (°) of the bucket at its highest point is 92 Whole machine specification Total length (with bucket) (mm)3310 Total length (without attachments) (mm)2586 Full width (tire edge) (mm)1676 Full width (bucket edge) (mm)1727 Total height (up to the cab roof) (mm)1938 Wheelbase (mm) : 1030 Standard/optional accessories Drive chain adjustment is not required Dual-channel cooling system is standard Standard configuration of intelligent fan cooling system The self-diagnostic system is optional The joystick (SJC) is optional A luxurious dashboard is optional The automatic engine shutdown device is standard
