Rinieri EB 1532 4

Pris ekskl. moms

Images5
Rinieri EB 1532 4 Tilbehør til frontlæsser
Rinieri EB 1532 4 Tilbehør til frontlæsser
Rinieri EB 1532 4 Tilbehør til frontlæsser
FavoriteFavorit
shareDel
Save searchGem søgning
Udskriv

INFO

Produktgruppe
Tilbehør til frontlæsser
Mærke / model
Rinieri EB 1532 4
Årgang
2015
Ekstra valgmuligheder
Ex demo
Maskinplacering
Degeberga
Land
Sverige
Generel klasse
1
2
3
4
5
Mascus ID
ED5802F0

PRISSÆTNING

Vælg valuta

DETALJER

Lager nr.
6EB15324
Tilbehørstype
Halmspyd
Serienummer
28311
Transportvægt
500 kg
Tilstandsoplysninger/Garanti
Ingen
Produktionsland
Italien
Øvrige oplysninger

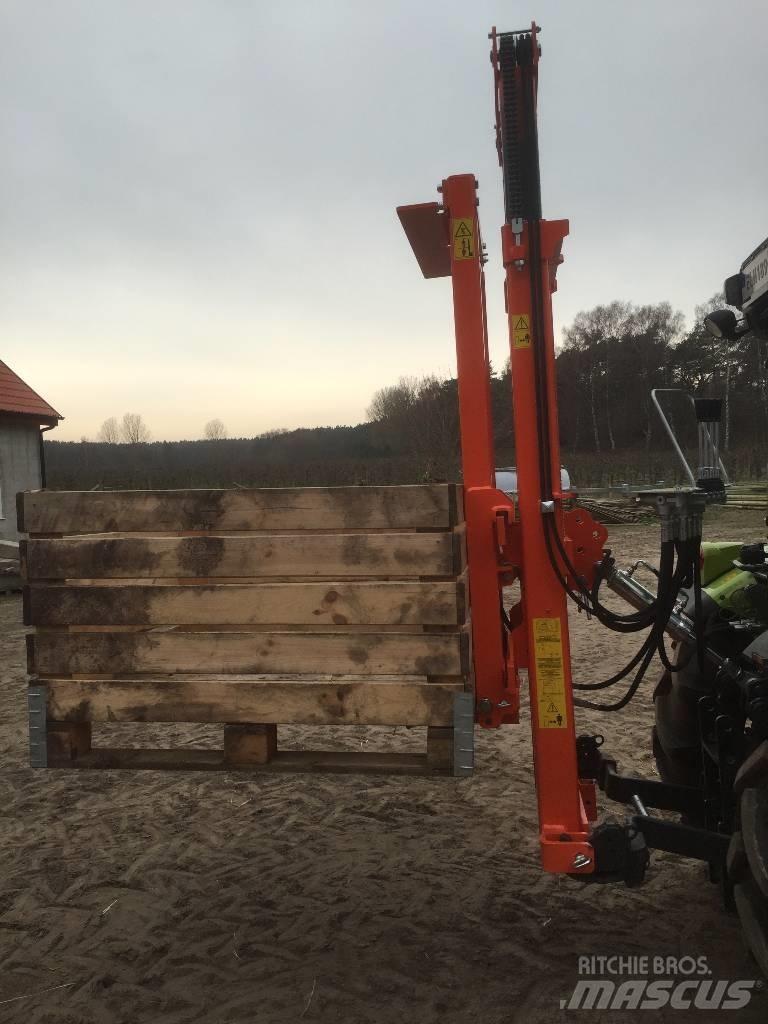

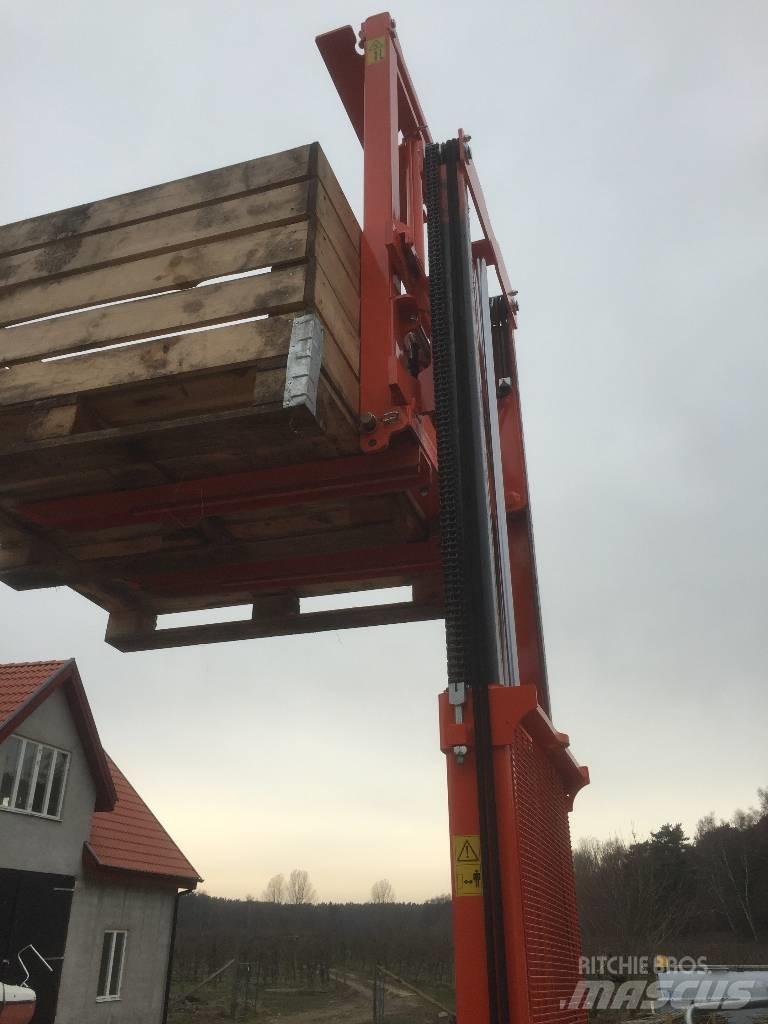

Elevators with hydraulic distributor are specially designed for tractors with three-point linkage through pivot and a shreaded arm. The elevator can function by means of distributor with levers. The needed thrust is setted on by the hydraulic system of the tractor. The elevation function is enabled by action on the hydraulic cylinder togheter with the vertical rods that make the truck slide through the chains. The elevator is equipped with reclining loading forks and security chain for the operator. On demand the folding bins locking is available, the cylinder for folding bins locking the cylinder for the tilting which replaces the threaded arm, the cylinder for the shifting. Specification: Capacity load Max (kg): 1500 Max Elevation (mm) : 3200 Max With (mm): 700 Total With (mm): 840 Side shifting (mm): 100-100 Coupling Height from the ground (mm): 500 Gripper Min. H / Max. H (mm) : 1400 / 2600 Overall dimensions of the mast installed on the tractor (mm): 2410 Hydraulic movements: Lifting + Tilting + Side shift + Bins lockingVis mere

Callenbring & CO AB

Julebodavägen 13 29795 Degeberga Skåne län Sverige
