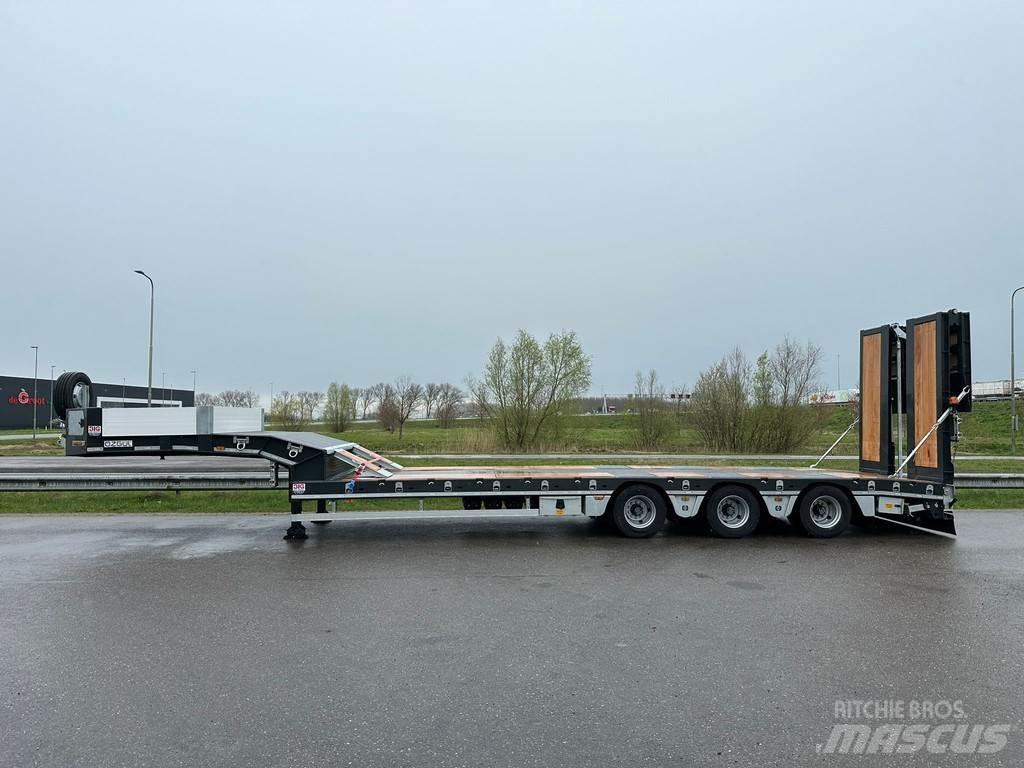

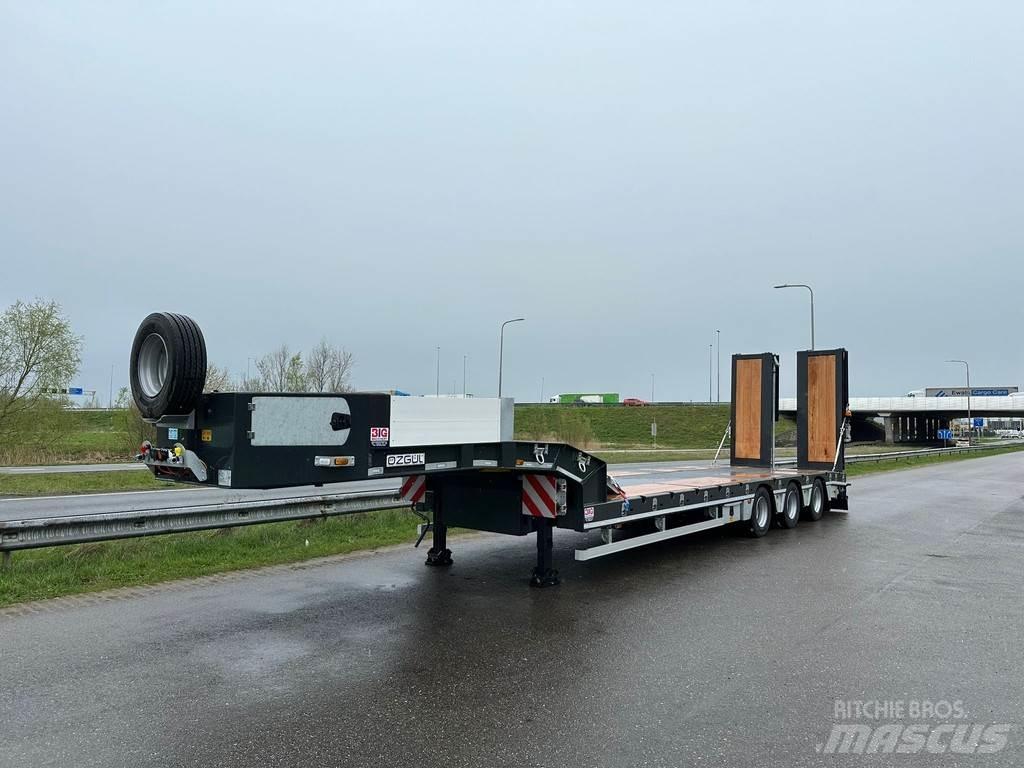

Ozgul LW3 EU FIX

Name: Ozgul LW3 EU FIX
Brand: Ozgul
SKU: C0D4E77F
Price: 43000 EUR
Availability: InStock

Pris ekskl. moms

Favorit

Del

Gem søgning

Udskriv

INFO

Produktgruppe

Semi-trailer blokvogn

Mærke / model

Ozgul LW3 EU FIX

Årgang

2024

Ekstra valgmuligheder

Maskinplacering

BIG 1 BIG Machinery B.V. (Schiemerik 1)

Land

Holland

Mascus ID

C0D4E77F

PRISSÆTNING

Vælg valuta

DETALJER

Tilmelding år

2024

Lager nr.

00032318

Producent

OZGUL

Produktionsland

Tyrkiet

Tilbehør

EN: ABS, EBS, Lifting axle, Spare tyre NL: ABS, EBS, Liftas, Reserveband

Øvrige oplysninger

MASSES & DIMENSIONS Gross Vehicle Weight (kg) : 58.000 Loading Platform Length (mm) : 9.000 Weight of Axle Group (kg) : 36.000 Total Lenght (mm) : 13.550 Kingpin Capacity (kg) : 22.000 Total Width (mm) : 2.550 Curb Weight (kg) : 12.300 Loading Platform Height (mm) : 920 Pay Load (kg) : 45.700 Height of 5.th Wheel (mm) : 1.310 CONSTRUCTIONS Base Chassis Heavy duty and extra durability designed BOX type chassis All welded S355 steel chassis. Outer frame is UPE 240 profile. Welding (Chassis) : Automatic ARC submerged. Welding (Superstructure) : Automatic robot welding. Axle (Type) : Özkoç Trax or Osman Koç Turkish Brand Drum brakes 3 x 12 Ton axles Axle Lifting : 1st axle automatic Suspension (Type) : Air Suspension. Steering Axles : - King pin (Type) : 1 position with 1x coupling-pen 2” (EU approved) Çayırova Brand. Tires : 12+1 Units, 245 / 70 R 17.5 Fulda or Pirelli or Goodyear Brand. Rims : 12+1 Units, 6.75 x 17.5 steel rims. Jantas or Ako Brand. Landing Gear : Mechanical operated by one side, two speed. Gos Brand. Brake System : Wabco EBS (4S/3M) with RSS according to EC Directive with ADR Adaptation. Brake Chamber 1 axles with 2 units emergency brake chambers. 2 axle with 4 unit service brake chambers. Electric System 24V, 2x7 + 1x15 pin sockets, according to SAE standard with ADR Adaptation SABA Brand. • 2 x Rear Stop Lights. - 4 x Side LED Lights. • 2 x White LED Lights - 2 x Front LED Lights • 2 x Registration Plate Lights - 2 x rotating Lights Floor Above tyres and edges of platform are covered chequered sheet and hard wood,the middle surface is covered by flat sheet steel. Rear Loading Ramps Hydraulic operated rear ramps with Electro pump for rear ramps hydraulic function with cable push – button for remote control.Folding type rear ramps length 2500 mm +1500 mm width 900 mm,covered all steel.Rear ramps are sliding internal and external hydraulic. Short steel ramps behind of neck. Color : Upon Request Paint Application Sand Blasting, Chemical cleaning, HYZINC covering, Epoxy covering and 2 coats of acrylic paint. TECHNICAL SPECIFICATIONS Accessories • 2 x 7 pcs of heavy duty lashing rings mounted on the outer frame mushroom type • 4 x Certificated Expray mud flaps. • 1 x Plastic water tank • 2 x Wheel chocks and holders • 2 x 7 Galvanized sides extensions brackets 250 mm + 250 mm • 2 x Side Protections, Aluminium • 1 x Tool box. • 1 x spare Wheel carrier with 1 tire(on the gooseneck) • 2 x Manual support Legs at the rear. • 2 x Reflective tape and reflector sign at the rear and sides. • 2 x Side extensions reflector • Steel front panel(height:400mm) • Aluminum side panels on gooseneck section(height:400mm) • 1 plaque places on rear ramps or bumper = More information = Empty weight: 12.300 kg CE mark: yes COC available: YesVis mere
