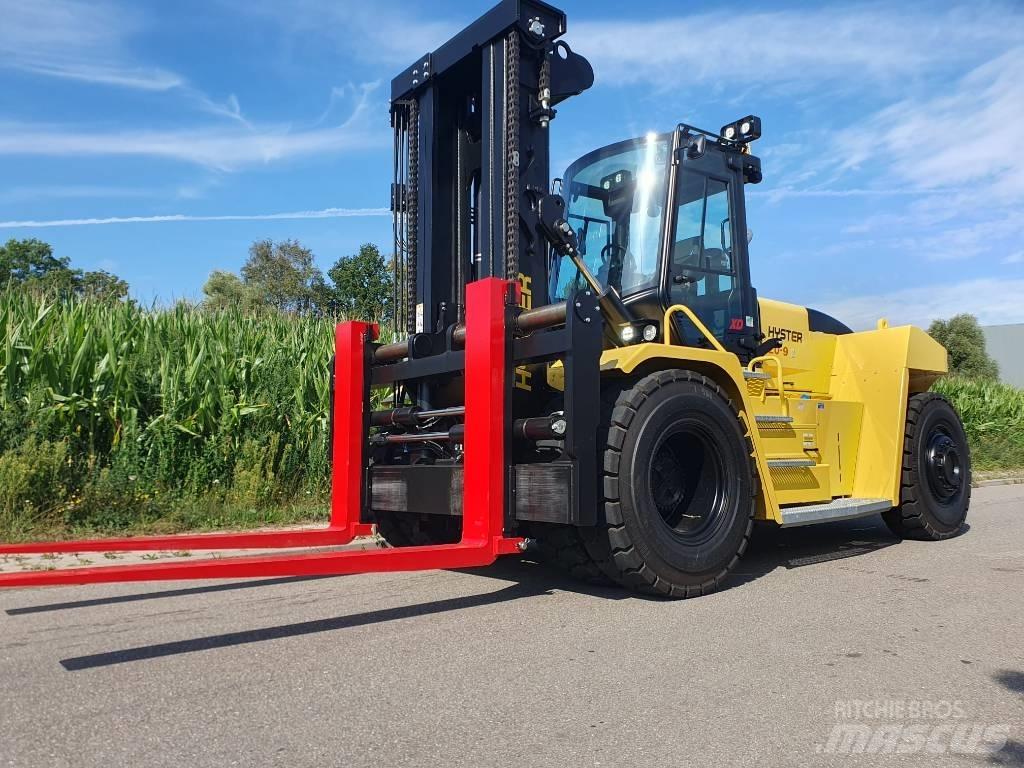

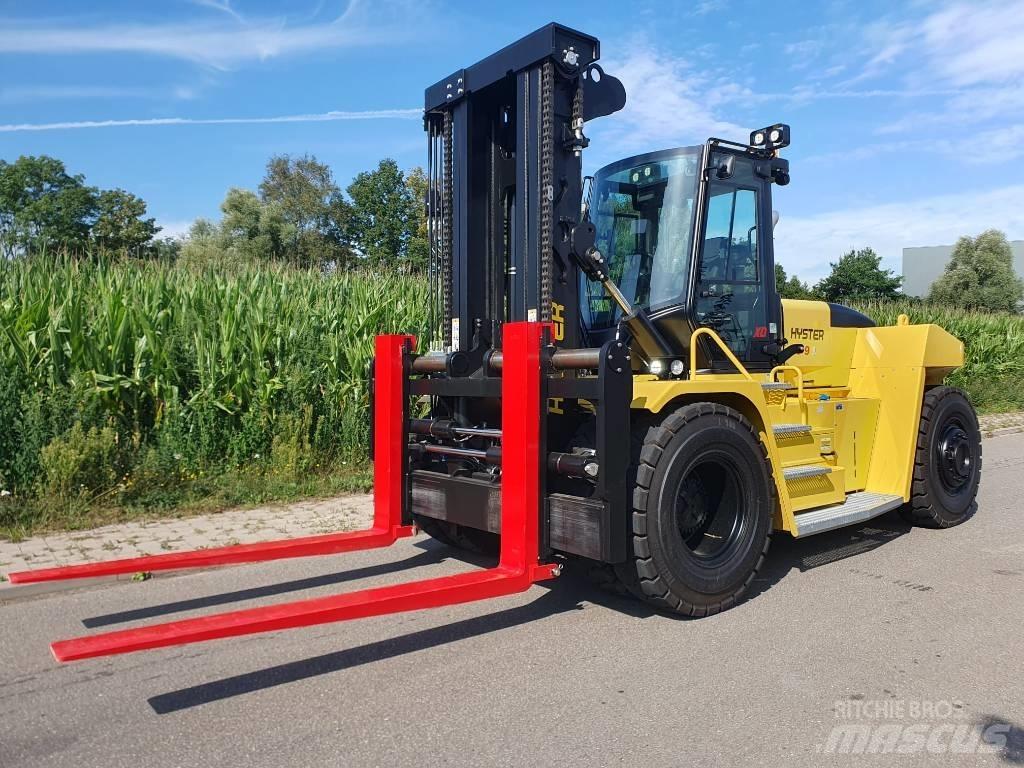

Hyster H 20 XD 9
Pris ekskl. moms
Ring for pris
Udskriv
INFO
Produktgruppe
Diesel gaffeltrucks
Mærke / model
Hyster H 20 XD 9
Årgang
2024
Driftstimer
5 h
Ekstra valgmuligheder
Ny
Maskinplacering
Barneveld, Gelderland
Land
Holland
Generel klasse
1
2
3
4
5
Mascus ID
EFFC882F
DETALJER
Antal hjul
6
Seneste inspektion
2024-09-02
Maksimal løftekapacitet
20000 kg
Løftehøjde
3750 mm
Friløft
3780 mm
Løftemast
Duplex
Dækmærke
Trelleborg
Dæktype
Pneumatisk
Gaffellængde
2440 mm
Kabine
Lukket
Transmission
automaat
Motor
Mercedes
Motorydelse
180 kW (245 hk)
Motormærke (eller motorproducent)
Mercedes
Resterende fordæk
100
Resterende bagdæk
100
Størrelse på fordæk
14.00-24
Størrelse på bagdæk
14.00-24
Produktionsland
Holland
Antal styrehjul
2
Antal drivhjul
2
Certifikater
CE
Udstyr
Soltag
Varmeapparat
Inspektionsrapport
Øvrige oplysninger
Hyster® H20XD9 High Capacity Forklift Truck: 20,000 kg Nominal Capacity @ 900 mm Load Center /
3,750 mm Wheelbase
Truck Start -- Key switch with start button -- Without Seatbelt Interlock

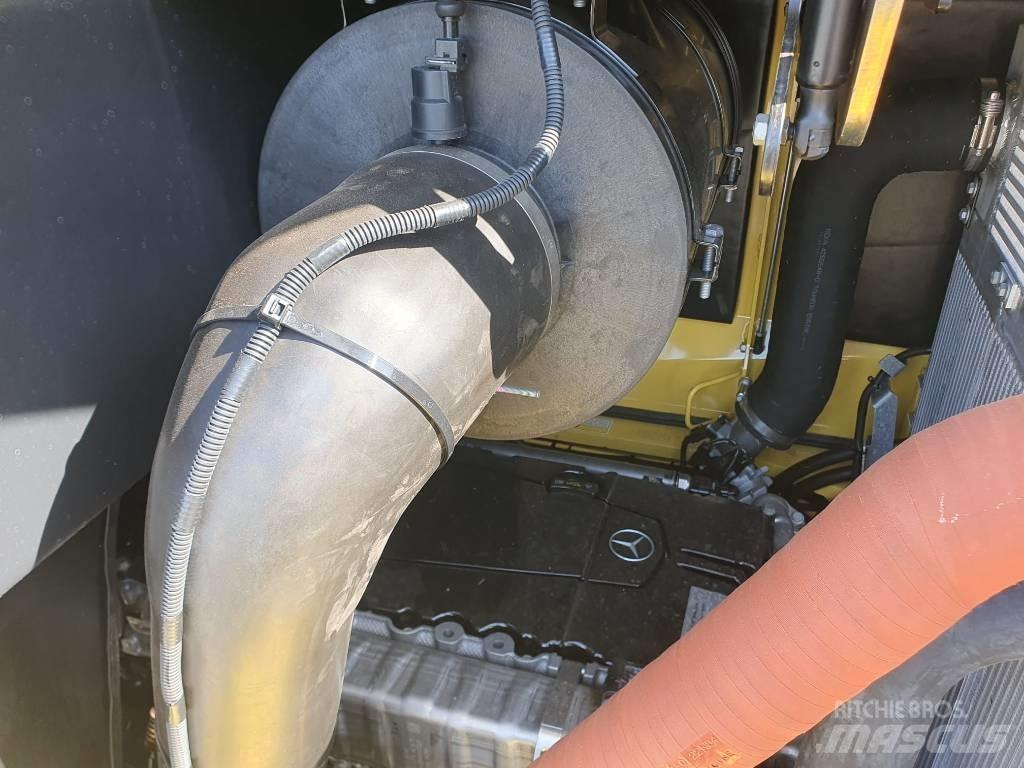

Mercedes 6R1000 7.7L Stage V Diesel Engine: Rated Power 180 kW @ 2200 rpm
Oil-immersed Wet Disc Brakes
ZF WG211 5-Speed Transmission with 5 Speeds Forward and 3 Speeds Reverse
CE Certification
Coolant Level Warning on Display
Engine Oil level on Display and Dipstick
Fuel Cap - Non-lockable
Delayed Engine Shutdown for Turbo Cooldown
2 Stage Non Free Lift Mast - 3750mm Maximum Lift Height - 3780mm Overall Lowered Height
Mast Tilt - 10° Forward / 12° Back
2940mm Quick Disconnect Hook Type Dual Function Sideshift Carriage with Simultaneous and
Individual Fork Positioner
2440mm Long x 100mm Thick x 250mm Wide - Hook Type Forks with Standard Taper
Pressure Compensated Lowering
6 Function (4 Auxiliary) Hydraulic Valve
Hydraulics controlled by 4 Levers and 2 Rocker Switches - Not For Clamping Attachments
4 Auxiliary Function Hose Group - 3 Hoses and 1 Wire Cable Externally Mounted - Includes Selector
Valve
Pneumatic Bias Ply Drive Tyres / 14.00-24 24PR
Pneumatic Bias Ply Steer Tyres / 14.00-24 24PR
Enclosed Operator Cabin with Air Conditioning and Automatic Climate Control
Top Window with Armored Glass
2 External Wide Angle Mirrors mounted on Cab Handrail
Digital 7" Display
I-Type Single Blade Wiper on Front Window
Armrest on Left Side
Electronic Horn 105 db(A)
Interior Dome Light
Manual Tilt Operator Compartment for Service Access
Sun Roller Screens for Rear and Top Window
Forward-Neutral-Reverse Directional Control on Armrest
Steering Wheel with Spinner Knob
Park Brake -- Automatic
Air Ride Full Suspension Vinyl Seat
Seatbelt - 2-Point High-Visibility
High and Adjustable Seat Backrest
Hyster Tracker Wireless Monitoring - EMEA
2 LED Work Lights Mast Mounted Front / 2 LED Cab Mounted Rear / 2 LED Drive Lights Front Fenders
/ 2 LED Rearward Cluster with Stop, Tail and Reverse Lights / Directional Lights on Front Fender and
Rear Cluster
Audible Alarm - Reverse Direction Activated - Self-Adjusting 82-102 dB(A)
Amber Strobe Light - Ignition and Switch Activated
24 Months / 4000 Hours Manufacturer's Warranty
Gebri Handel & Verhuur
Stavorenweg 3 3771 NK Barneveld Gelderland Holland
