Comet Piattaforma 14 /16 metri su Pick Up

Pris ekskl. moms

Ring for pris

Compnay LOGO
Images17Videos1

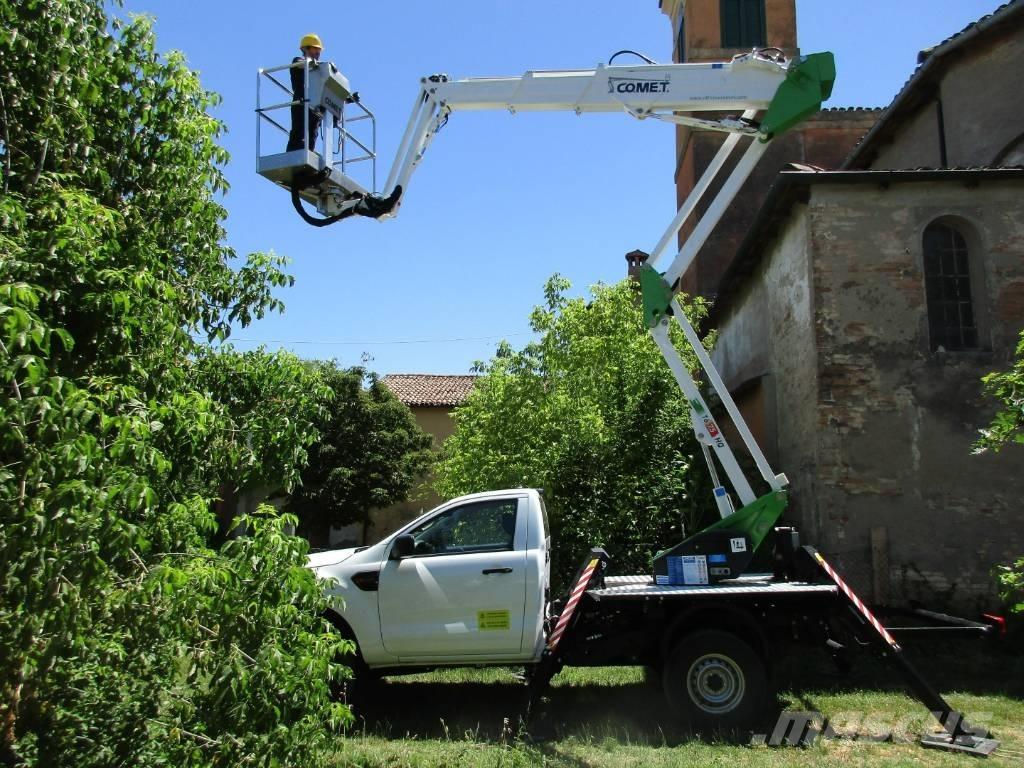

Comet Piattaforma 14 /16 metri su Pick Up Lastbilmonterede lifte

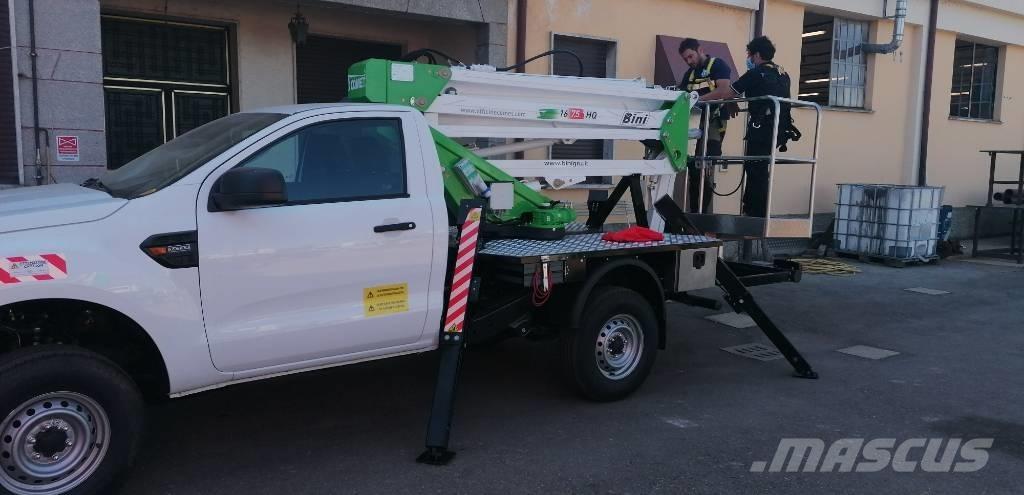

Comet Piattaforma 14 /16 metri su Pick Up Lastbilmonterede lifte
FavoriteFavorit
shareDel
Save searchGem søgning
Udskriv

INFO

Produktgruppe
Lastbilmonterede lifte
Mærke / model
Comet Piattaforma 14 /16 metri su Pick Up
Årgang
2024
Ekstra valgmuligheder
Ny
Maskinplacering
Castello D'Argile, Bologna
Land
Italien
Generel klasse
1
2
3
4
5
Mascus ID
1BF40FC9

DETALJER

Arbejdshøjde
1400 cm
Bomtype
Knæk
Udstødningsklasse
Trin VI / Tier VI
Bruttovægt
3500 kg
Maksimal løftekapacitet
200 kg
Original farve
Bianco
Undervognsbrand
Comet
Tilstandsoplysninger/Garanti
1 anno
Produktionsland
Italien
Forsendelsesbetingelser
EXW
Certifikater
CE
Inspektionsrapport
QSA-74FT00061-74FT00061-SCHEDA-TECNICA-NEW-EUROSKY-16-2-6-7-5-HQ-JIB-SU-FORD-RANGER-SINGLECAB-3-2T-360.pdfQSA-78FT00085-SCHEDA-TECNICA-NEW-EUROSKY-14-2-6-HQ-JIB-SU-FORD-RANGER-SINGLE-CAB-XL4WD-360.pdfSCHEDA-TECNICA-NEW-EUROSKY-16-2-6-7-5-HQ-JIB-ISUZU-D-MAX-N60B-4X4-P3125-PROVV.pdf
Øvrige oplysninger
14/16 METERS AERIAL PLATFORM ON PICK UP Working height 14 m (available in the 16 meter version); walking surface height 12 m; capacity Kg.200 including 2 people; maximum reach mt.6.00; maximum reach capacity 200 kg; turret rotation: 360° continuous on fifth wheel; total height of closed machine 2050 mm; 360° rotating turret on fifth wheel; arm with two double-parallelogram articulated elements; JIB terminal articulated arm; electrical cables, catenaries and tubes inside the arm; ALUMINUM BASKET: dimensions 1400x600x1100 mm; rotation cylinder protection; load cell for checking the load in the basket; CONTROLS: completely hydraulic, proportional with up to three movements at the same time, placed in a vertical position on the basket and protected by a cover. Engine on/off button and overload lights, alarm lights and emergency button, basket central position light - hydraulic system in low pressure nacelle (25 bar) ACCESSORIES FITTED AS STANDARD: starting/stopping the vehicle engine from ground controls and controls in the basket; 230 V ac CE electrical socket in basket with branch socket in turret; basket anti-collision bar on rear bumper; wall anti-collision system (to block any movement if the spacecraft touches walls or other obstacles); cabin anti-collision system (to block movements that could accidentally cause the arm to hit the vehicle cabin). Mounted on 4x2/4X4 Pick upVis mere

Bini Gru

Via Aldo Moro,62 40050 Castello D'Argile Bologna Italien
